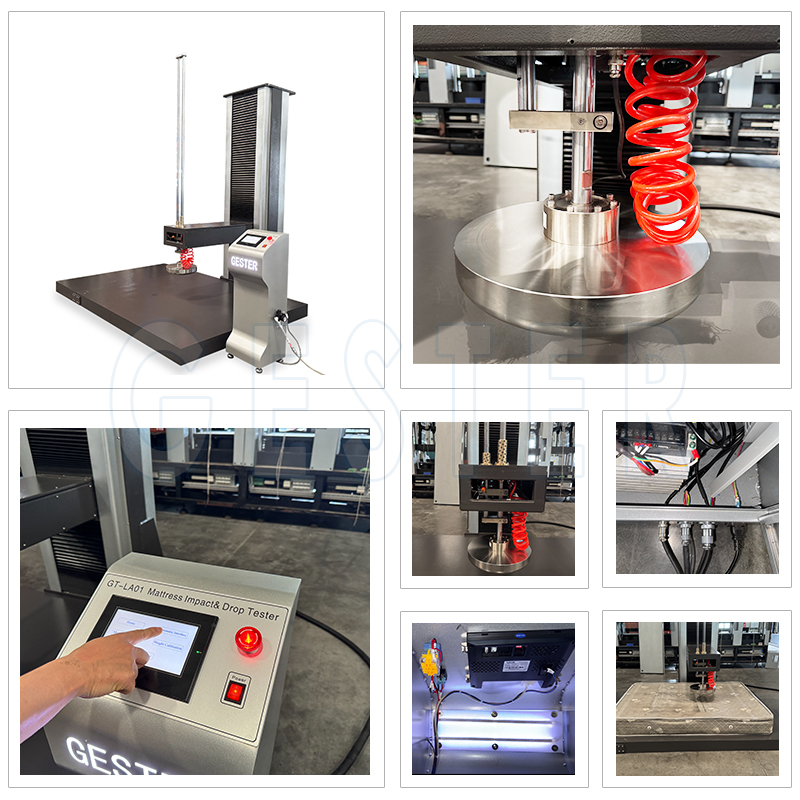

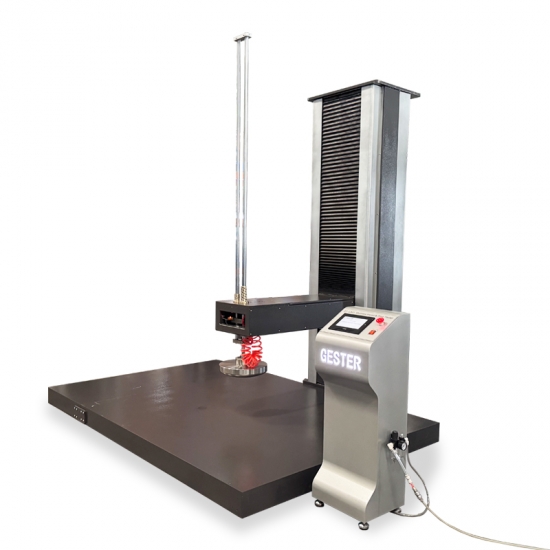

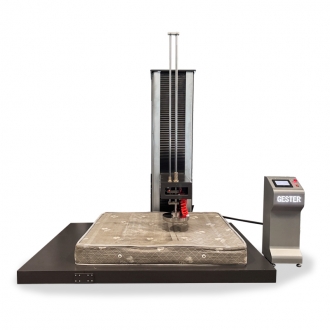

ASTM F1566 Mattress Impact Drop Tester GT-LA01

(Furniture Testing Equipment)

  • Item NO.:

    GT-LA01
  • Lead Time:

    40days
  • Brand:

    GESTER
  • Payment:

    TT OR L/C
  • Shipping Port:

    Xiamen Port
Description


ASTM F1566 Mattress Impact Drop Tester

Applications:

The Mattress impact drop tester is widely used to determine and assess the impact resistance of built-in and box-type mattress, to evaluate sofa and mattress sustaining rapid drop on seat or jumping stress ability.


Principle:

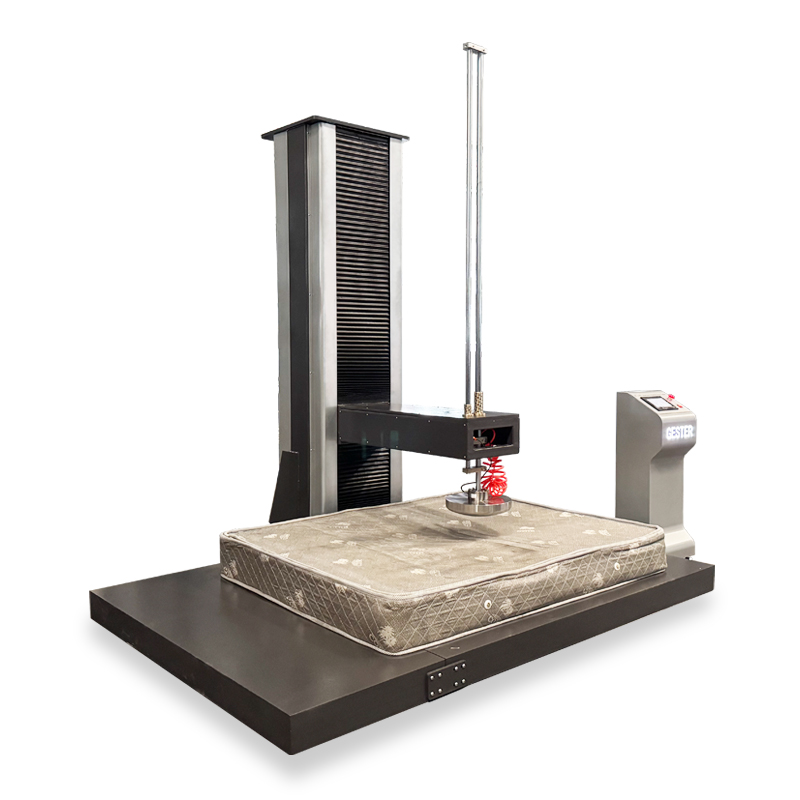

The Mattress Test Machine consists of a 79.5 ± 1kg platen, which drops down and impacts the test specimen from various heights as selected by the operator. It is suitable for common mattress, foam mattress and spring mattress.


Standards:

ASTM F1566


Feature:

1. This mattress impact test machine is adopted Touch Screen+PLC control model, easy operation.

2. Main components is adopted exported Celtron sensor (Made in USA).

3. This mattress test machine could test the samples thickness, up to impact height and analyse the test result automatically.


Key Specifications:

Model

GT-LA01

Controller

Touch screen + PLC programmable control

Load cell

Celtron,5KN

Platen

Weight

79.5 ± 1kg

Diameter

356 ± 10mm

Thickness

91 ± 5mm

Convex spherical curvature radius

300mm

Edge radius

25 ± 2.5mm

Power supply

1∮,  AC 220V  50/60Hz

Dimension (WxDxH)

W750×D1900×H1800mm

Weight

450Kg

Standards

ASTM F1566 section 8


Applications Industry
All kinds of Mattress can be tested on the Mattress Impact Drop Tester GT-LA01
