Automatic Atomization Disinfection Machine GT-R800

(Biochemistry equipments)

  • Item NO.:

    GT-R800
  • Brand:

    GESTER
  • certificate:

    ISO 9001, UKAS, CE
Description

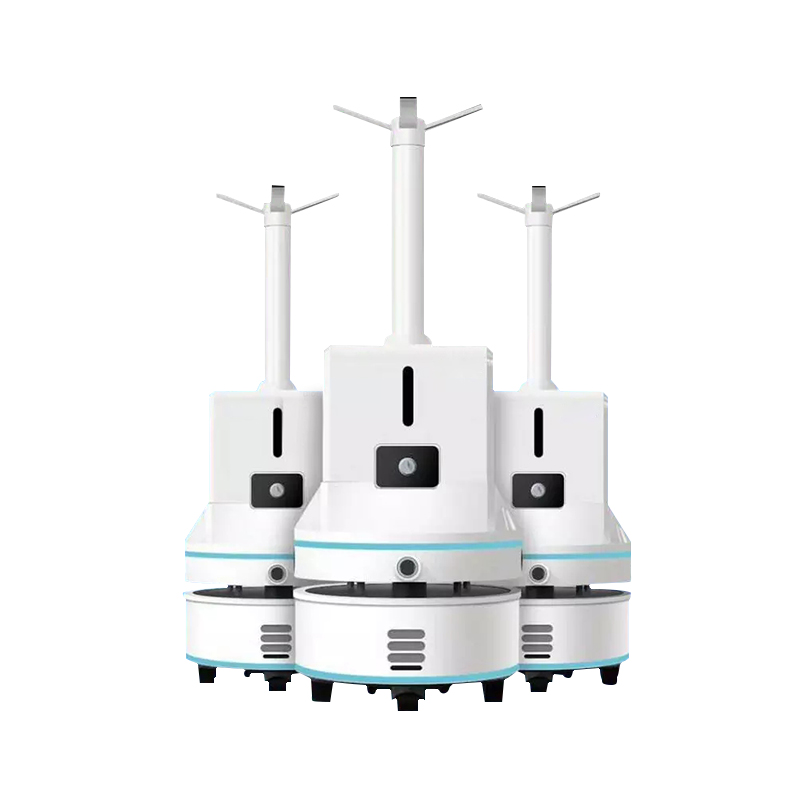

Automatic Atomization Disinfection Machine GT-R800

Applications:

The atomizing disinfection robot is by quickly atomizing the disinfectant and automatically spraying into the disinfection area to get the air effectively purified. Using 100mg/L hypochlorous acid disinfectant, according to the amount of 5ml/m3, continue to spray evenly into the space to disinfect.






Specification


  1. Disinfection Robot support the use of disinfectants such as hydrogen peroxide, sodium hypochlorite, and peracetic acid.
  2. The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection coverage is up to 4000 ~ 5000 m2.
  3. ultraviolet disinfection robot support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process.
  4. Two disinfection modes: timed disinfection and immediate disinfection.
  5. With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area.
  6. Support automatic return to charge, human assistance isn’t required.
  7. When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray device automatically.



Key Specifications

Model

GT-R800

External Size(mm)

φ500*1335

Atomization Efficiency

2L~3L/H(adjustable)

Disinfectant Capacity

16L

Spray Diameter

5-6m

Disinfection Medium

Hypochlorous acid,Chlorine dioxide,Hydrogen peroxide,Peroxyacetic acid, etc.

Spray Method

Four-direction spray, large opening spray(optional)

Moving Way

Autonomous path planning and automatic navigation

Moving Speed

0~0.6m/s

Power Supply

AC220±10%V 50Hz

Consumption

150W

Drive Method

Differential drive

Ability to Cross Obstacles

±10mm

Gradeability

≤8°

Driving Channel Width

≥700mm

Noise

≤50dB

Operating Time

5~6h

Battery

Lithium battery 28AH 24V

Charging Time

3~4h

Safety System

Lidar obstacle avoidance, power-off protection of disinfectant shortage

Package Size

Main Body

415*415*633mm

Chassis

614*614*750mm

Gross Weight

Main Body

8.2kg

Chassis

70.4kg
