child Trolley Dynamic Durability Testing equipment

Baby Trolley Dynamic Durability Tester GT-MH23B

(Toys Testing)

Item NO.:
GT-MH23B
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE

Contact Now

Description

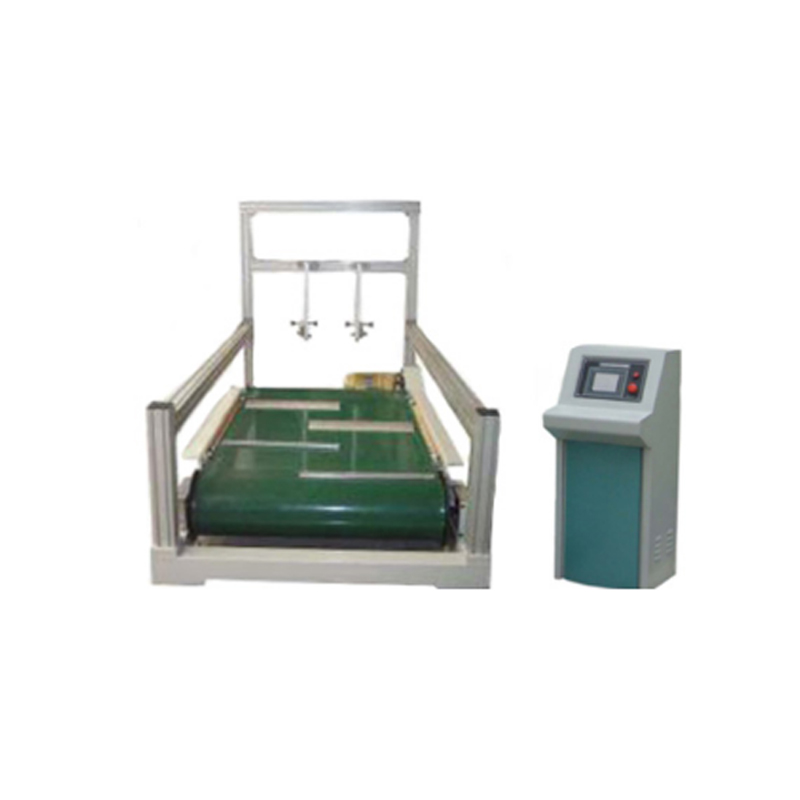

Baby Stroller Dynamic Durability Test Machine GT-MH23B

Applications:

The machine is mainly used to test the dynamic durability of the baby trolley on irregular surfaces. The machine is equipped with conveyor belt and the standard block is installed on the conveyor belt. The machine is a two-position model, you can simultaneously test two single-seat baby carriages, or about two-seat baby carriages.

Standards:

EN 1888-2012 Section5.10, 8.10.3, GB 14748-2006 Section 5.18

Specification

Conveyor belt speed	0-2 m / s adjustable
Handle lever Adjustable distance	Approx. 300 mm
Baby carriage walking left and right lever	about 200 mm, adjustable
Working Position	2
Control mode	PLC + 7 inch touch screen
Use power	AC220V, 50Hz
Outer dimensions (L×W×H)	3800×1260×2000 mm
Weight	500 kg
Optional accessories	GT-MH01 Test Mass A GT-MH02 Test Mass B GT-MH06 Test Mass F
