BIFMA Desks Casters Durability Testing Machine GT-LD03B

(Furniture Testing)

Item NO.:
GT-LD03B
Lead Time:
35days
Brand:
GESTER
Payment:
TT or L/C

Contact Now

Description

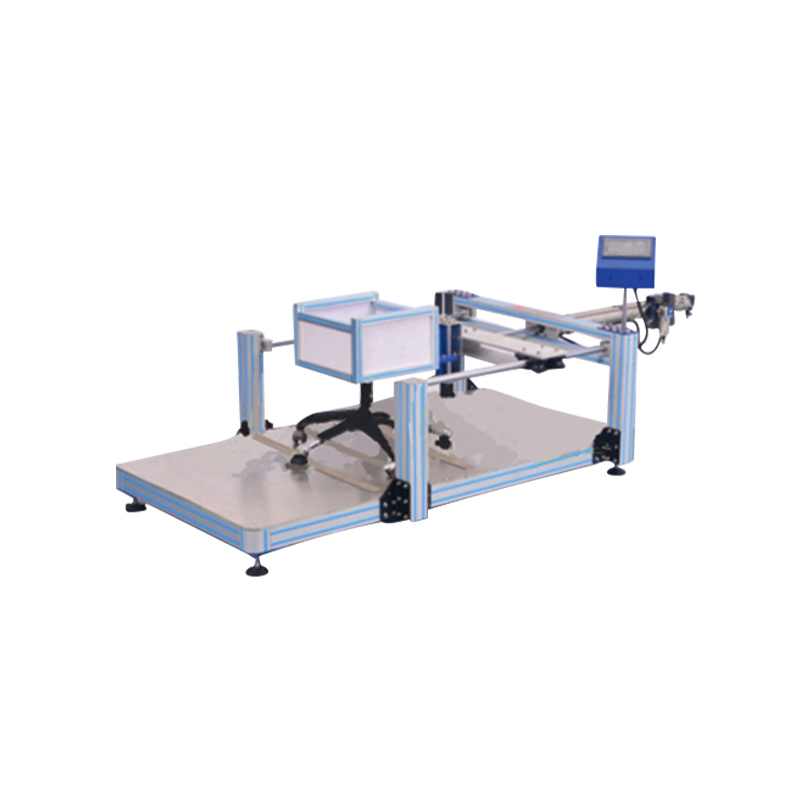

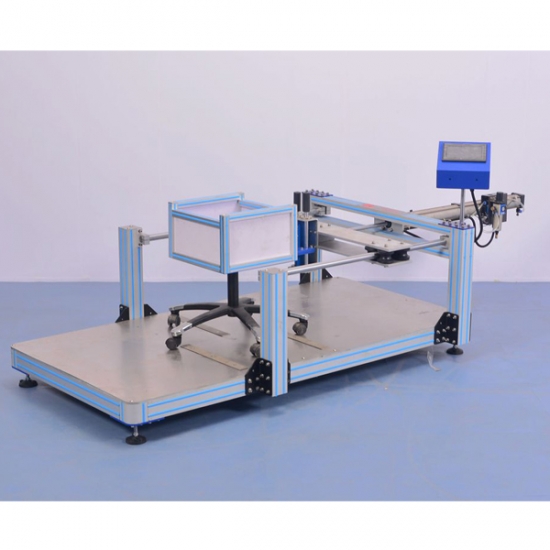

BIFMA Casters Durability Testing Machine

Applications:

The BIFMA Desks Casters Durability Testing Machine GT-LD03B is applies to tables which have castors fitted to all legs/supports, used to evaluate the castors and table frame ability of withstanding fatigue stresses and wear caused by moving the table back and forth.

Standards:

BIFMA X5.5-2014 Section18

Feature:

The machine frame is made of high quality aluminum, beautiful and generous.

Obstruction block can be dismantle freely, easy to switch test mode.

Key Specifications:

Modle	GT-LD03B
Control method	PLC Touch screen control
Moving stroke	762 ± 50 mm
Obstacle block	Width: 51mm
	Thickness: 3.2mm
	2 pieces, Spacing distance can be adjustable
Driving method	Air cylinder
Test speed	10±2 cpm
Test times	0~999999, settable
Power supply	1∮ AC 220V 50Hz 5A
Accessories	80 Lbs Incremental weights (Diameter 305mm)
Standards	BIFMA X5.5-2014 Section18
