BIFMAX5.1 Chair Assembly Testing Machine GT-LB08-5

(Furniture Testing)

Item NO.:
GT-LB08-5
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
BIFMAX5.1

Contact Now

Description

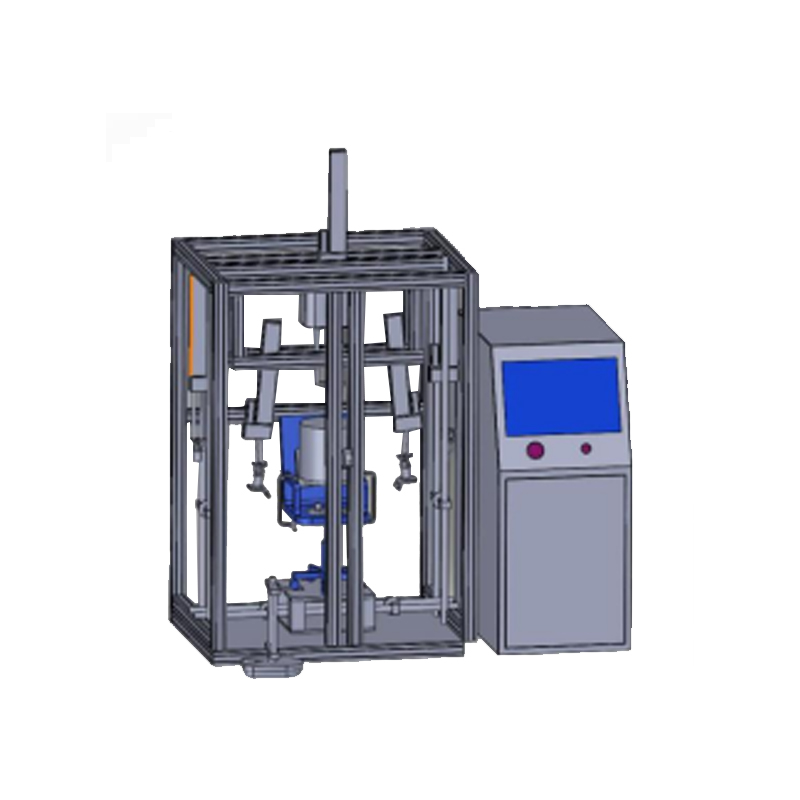

Chair Assembly Testing Machine

Applications:

This chair tester is according for the standard BIFMA X 5.1-2017 and combination with different methods.

Standard

BIFMAX5.1Section5: Backrest Strength Test - Static - Type l

BIFMAX5.1Section6: Backrest Strength Test - Static - Type II & lll

BIFMAX5.1 Section 7: Drop Test - Dynamic

BIFMAX5.1Section9: Tilt Mechanism Test - Cyclic

BIFMAX5.1 Section 10.3: Seating Impact Test

BIFMAX5.1Section10.4: Seating Front Corner Load-Ease Test

BIFMAX5.1 Section11.3.1: Rear Stability Test for Type III Chairs

BIFMAX5.1 Section11.3.2: Rear Stability Test for Type I and II Chairs

BIFMAX5.1Section12: Arm Strength Test - Vertical - Static

BIFMAX5.1Section13: Arm Strength Test - Horizontal - Static

BIFMAX5.1Section14: Backrest Durability Test - Cyclic - Type l

BIFMAX5.1Section15: Backrest Durability Test - Cyclic - Type Il and lll

BIFMAX5.1Section17: Leg Strength Test - Front and Side Application

BIFMAX5.1Section18: Footrest Static Load Test - Vertical

BIFMAX5.1Section19: Footrest Durability Test - Vertical - Cyclic

BIFMAX5.1Section20: Arm Durability Test - Cyclic

BIFMAX5.1Section22: Tablet Arm Chair Static Load Test

BIFMAX5.1Section23: Tablet Arm Chair Load Ease Test - Cyclic

BIFMAX5.1Section24: Structural Durability Test -Cyclic

Feature

1.The main structure is made of aluminum, which is beautiful and easy to maintain

2. Chair Assembly Testing Machine equipped with 6 sets of driving devices, adopt latest electro-pneumatic proportional pressure valve with cylinder driving, which make test load control more accurate, and reduce noise.

3. It is easy to operate with PLC touch screen.

4. Most major components are import, like SMC electro-pneumatic proportional pressure valve from Japan, Celtron Load Cell from USA etc.

Key Specifications

Model	GT-LB08-5
Control mode	PC control
Load sensor range	2500N
Dimensions(WxDxH)	160 x 160 x 210cm
Weight(Kg)	About 500kg
Power supply	1phase AC 220V 50/60Hz

Accessories

Standard Accessories	2 pcs	Arm durability pad
	2 pcs	Smaller seat loading pad
	1 pc	Back loading pad
	2 pcs	Local loading pad
	1 pc	BIFMA Bag Type Impactor device
	1 pc	Stationary fixture
	2 pcs	Stops
Option Accessories	1 pc	GT-LB27 BIFMA Loading point template

Applications Industry

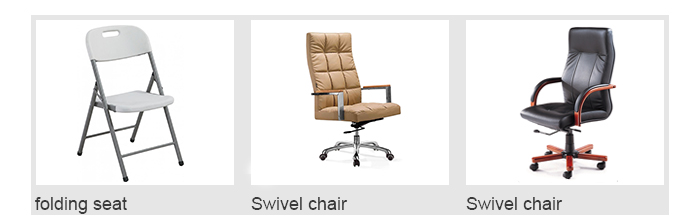

All kinds of chair products can be tested on the Chair Assembly Testing Machine
