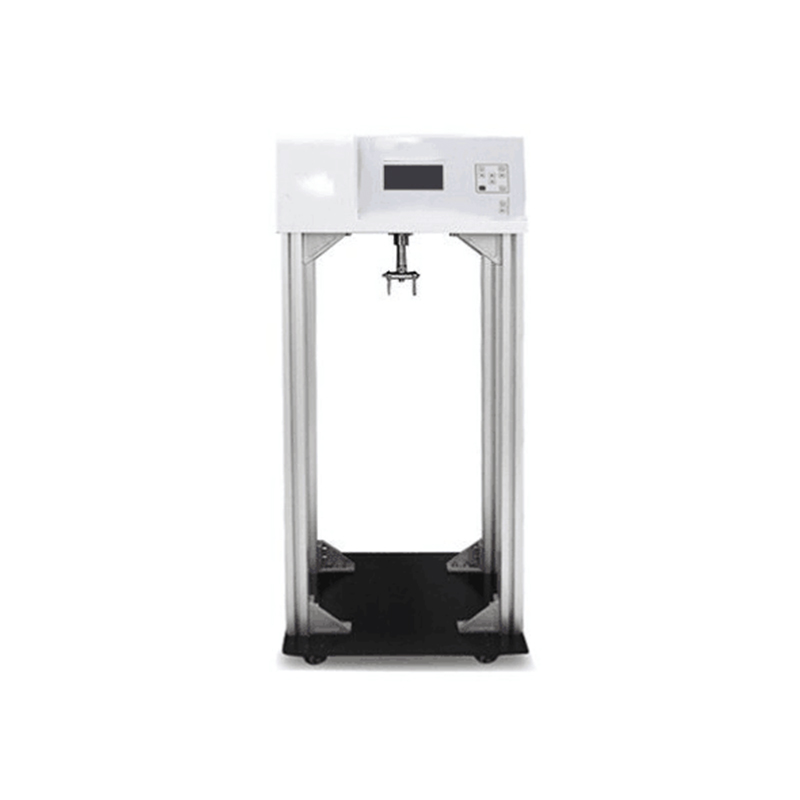

Carry Bag Fatigue Tester GT-LC26

(Furniture Testing)

Item NO.:
GT-LC26
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
GB21661

Contact Now

Description

Applications:

It is used for up and down vibration fatigue testing of plastic carrier bags, vest bags and other carrier bags that are subjected to a certain weight. Widely used in quality inspection units and tote bag manufacturers.

Principle

A mixture of granules equal to two times the nominal mass of the contents is filled to three-quarters of a bag and then hung on the fatigue tester, the number of times the bag is lifted or the time it is lifted is set for the fatigue test and the bag is observed for damage at the end of the test.

Features

1.Four-column structure, stable and reliable test process.

2.Test number and test time can be set freely.

Key Specification

Model	GT-LC26
Vibration range	30±2mm
Vibration frequency	2-3Hz(130times/min)
Height of test space	≤1000mm(≤500mm Optional)
Load Capacity	20kg
Count Range	99999 times
Dimension	Approx 570mmX510mmX1520mm
Weight	Approx 60kg
Standards	GB21661

Related Tags :

GESTER instruments vest bags Fatigue Tester carrier bags vibration fatigue testing equipment Plastic Bag Carrying Fatigue Testing Machine plastic carrier bags vibration fatigue testing machine GB21661 Carry Bag Fatigue Tester
