Chair and Table Universal Testing Machine GT-LD23

Applications:

This furniture tester is used for testing the mechanical properties of tables, desks and chairs. Can perform the horizontal static load, vertical static load, impact test and durability test.

For example , chair testing:

• Seat static load and back static load test
• Seat and back durability test
• Seat front edge static load test
• Seat front edge durability test
• Seat impact test
• Back rests vertical load test
• Back rests horizontal forward static load test
• Headrest static load test
• Foot rest static load test or durability test
• Back impact test
• Leg rest static load test
• Leg forward or sideways static load test
• Arm rest sideways static load test
• Arm rest downwards static load test
• Arm rest durability test
• Arm rest impact test
• Auxiliary writing surfaces static load test and durability test
• Arm rests vertical upwards static load test

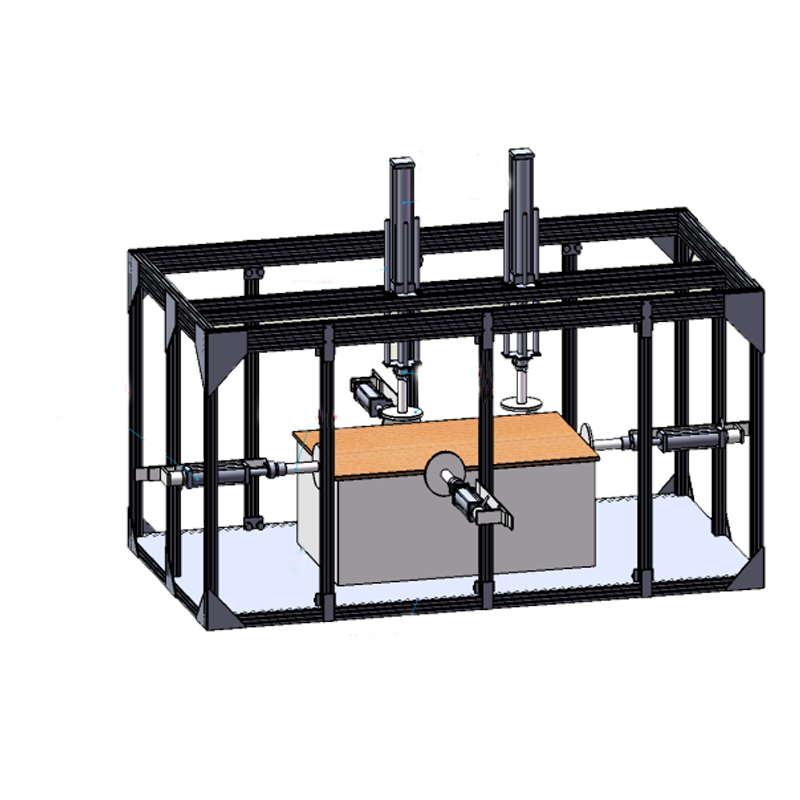

1. The machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.

2. Up to7 sets of cylinders installed, one set on each side, three on top frame. All cylinders can be adjusted up and down, frontward and backward to cover all mounting surfaces. The 7 sets of cylinders can execute joint or independent operation.

3. The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.

4. PLC controller to control the actions of the instrument; the operation is intuitive and simple.

5. Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.

6. Removable loading pad, can easily change the different loading pad to meet the different test requirements.
