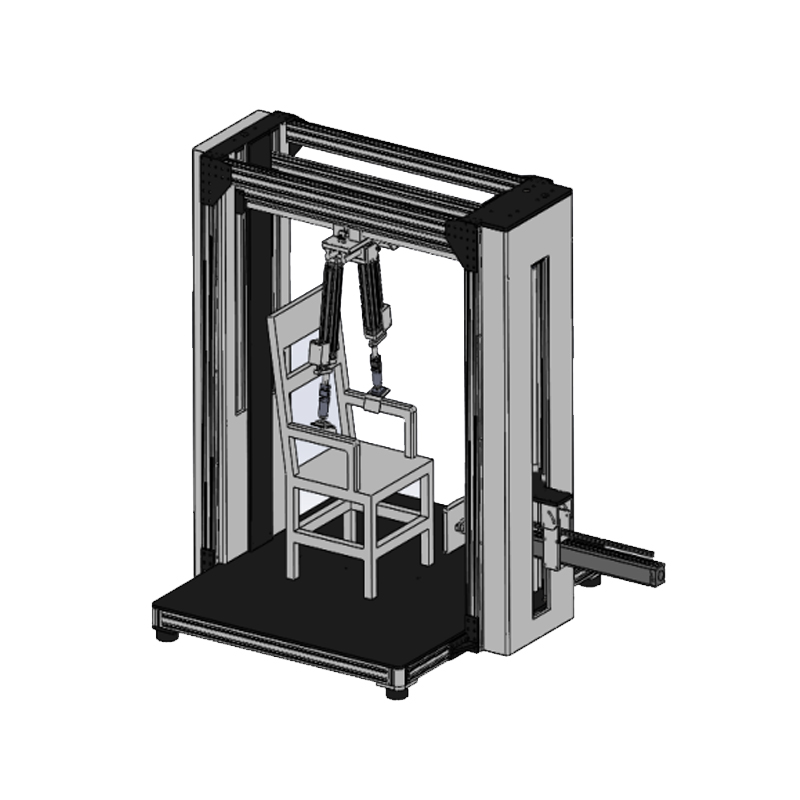

Chair Drop and Armrest Durability Testing Machine GT-LB08-10

(Furniture Testing)

Item NO.:
GT-LB08-1
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE

Contact Now

Description

Applications:

The design features of our instrument is multi-purpose machine. It can adjust the beam to up and down, left and right, front and back for doing different tests:

10 degree Arm Durability Test
Drop Test - Dynamic

Standards

DIN 68878--2011 Section 6.3.2: Drop Test - Dynamic

Key Specifications

Model	GT-LB08-10
Motor	0.75 kw Frequency conversion motor +frequency transformer
Up and down moving distance	500-1800mm, available for different chair height.
Load sensor	Celtron
Electric proportional valve	SMC 0—0.9mpa
Control system	PLC+ touch screen control system
Load speed	1~25cpm
Power supply	1phase AC 220V
Dimension (W×D×H)	2600×2000×2400mm
Weight	≈600KG
