Chair Seating and Back Tester GT-LB04-1B

(Furniture Testing)

Item NO.:
GT-LB04-1B
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE

Contact Now

Description

Applications:

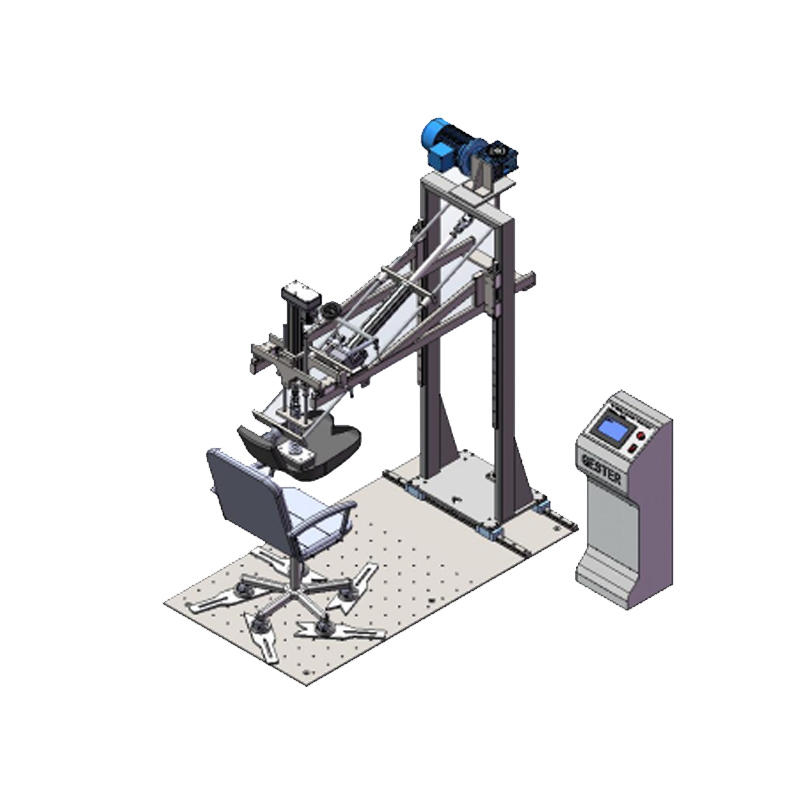

The Chair Testing Machine tests the strength and durability of the seats and backrests by simulating the routine use loading of the seat.

The Chair Seating and Back Testing Machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:

1. Seat and back static load test.

2. Seat and back durability test.

3. Seat front edge static load and durability tests.

4. Horizontal forward static loading test for backrest.

Chair Seating and Back Tester Key Specification

Model		GT-LB04-1B
Working position		1
Seat surface load capacity		2000N
backrest load capacity		2000N
Seat surface height		15 - 70cm
Testing time		0-99999 ( can be adjustment)
Control method		PLC touch screen control
Lifting method		Automatic lifting
Power		1 phase AC 220V 50/60Hz
Testing Methods	Standard EN 1728	1. Seat and back static load test 2. Seat and back durability test 3. Seat front edge static load and durability tests 4. Horizontal forward static loading test for backrest

Standard Accessories	1 pc	GT-LB01-1 Loading point template
	1 pc	GT-LB01-2 Seat loading pad
	1 pc	GT-LB01-3 Smaller seat loading pad
	1 pc	GT-LB01-4 Back loading pad
	1 pc	Stationary fixture
	2 pcs	Stops
