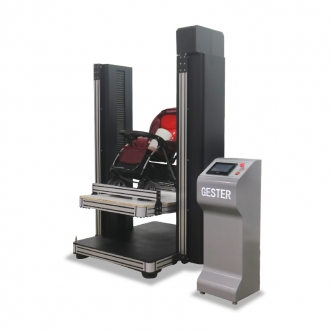

Child Vehicle Rotating Tester GT-MH22

(Toys Testing)

  • Item NO.:

    GT-MH22
  • Lead Time:

    30 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    EN 1888-2012 Section8.1.3.2.1 ,8.10.2, GB 14748-2006 Section 5.15
Description


Child Vehicle Rotating Tester GT-MH22

Applications:

The tester can attach the vehicle by its wheels or axles to the rigid platform which can be orientated in an axis parallel to the ground. Slowly rotate the vehicle with the test mass through a specified angle to the horizontal both in a clockwise and anticlockwise direction such that the attachment devices alone transmit the test load to the chassis or seat unit , and maintain this position for an specified time in each direction.





Standards:

EN 1888-2012 Section8.1.3.2.1 ,8.10.2, GB 14748-2006 Section 5.15



Feature

1.The test platform with wheel axle fixing device.
2.The test platform can rotate clockwise and counter clockwise.
3.Automatic judgment of specimen damage, automatic stop working.
4.Programmable control rotation angle, test frequency, cycle test, spacing interval
5.Can autosave when interruption of power supply, can choose to stop or continue to work
6.High precision angle sensor, can display table angle in real time.


Specification

Rotating speed

4±0.5rpm

Control mode

PLC

Display mode

7 inch screen touch screen display

Date display

Angle, frequency

Power supply

AC 220V, 50Hz
