Children bed comprehensive tester
Children bed comprehensive tester Children bed comprehensive tester

Children bed comprehensive tester GT-MF01

(Toys Testing Equipments)

  • Item NO.:

    GT-MF01
  • Lead Time:

    20-30 Days
  • Brand:

    GESTER
  • Payment:

    T/T L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    ASTM F1821, 16CFR PART 1217
Description

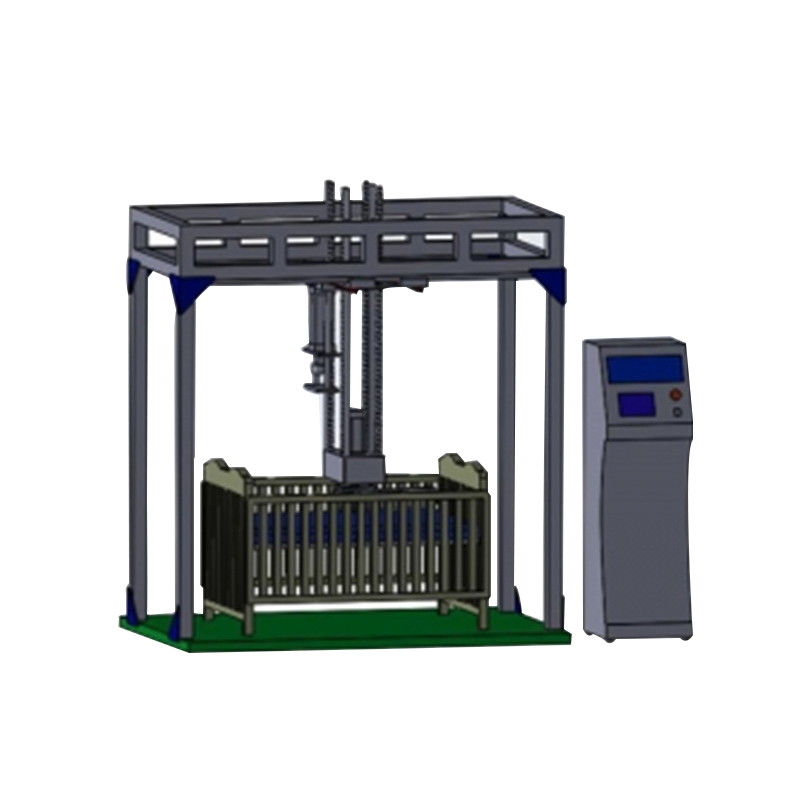

Children bed comprehensive tester


Applications:

This Children Bed Tester is mainly used for crib comprehensive performance test, including: mattress support system downwards static load test, fence downwards static load test, mattress support system impact test, fence strength testing , fence spindle / Slat static load testing .




Standards:

ASTM F1821 section 7.2.2, 7.2.3, 7.2.4, 7.3, 7.9, 7.10;

16CFR PART 1217


Feature

1.The power loading device of this machine are two Panasonic servo motor. One exerts a vertical downward load power. The other one performs a horizontal load strength and can adjust the angle of 360 degrees which makes it possible to test the surrounding fence.

2.The impact test is driven by Cylinder driving, the top of the cylinder is equipped with electromagnets. Complete the impact test by adsorbing and releasing the pounding head .



Key Specifications

Model

GT-MF01

Control mode

PLC control system

Drive mode

Impact test: Cylinder driving

Static load testing: Panasonic, servo motor

Load cell

Horizontal direction: 200kg

Vertical direction: 200kg

Precision: ±0.2%FS

Impact head weight

50 LBS

Impact height

305mm

Power load speed

1000mm/min

Power

AC 220V 50/60 Hz

Dimensions

2200 x 1500 x 2600mm

Weight

1000 kg


Standards accessories

1pc

Plywood: 37in x 19in x 0.75in

1pc

Plywood: 19in x 19in x 0.75in

1pc

Plywood: 12in x 12in x 0.75in

1pc

Plywood: 6in x 3in x 0.2in

1pc

Power line

Optional accessories

Optional

GT-MA12 Air compressor


Applications Industry

All kinds of crib products can be tested on the Children Bed Comprehensive Tester GT-MF01
