Digital Force Gauge GT-IMADA

(Toys Testing)

Item NO.:
GT-IMADA
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN 71-1, ASTM F963, 16 CFR 1500, ISO 8124-1, GB 6675-2

Contact Now

Description

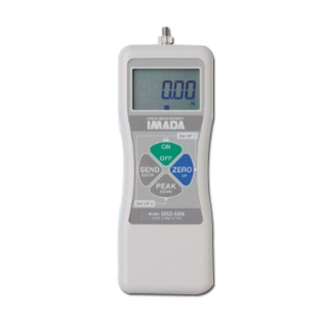

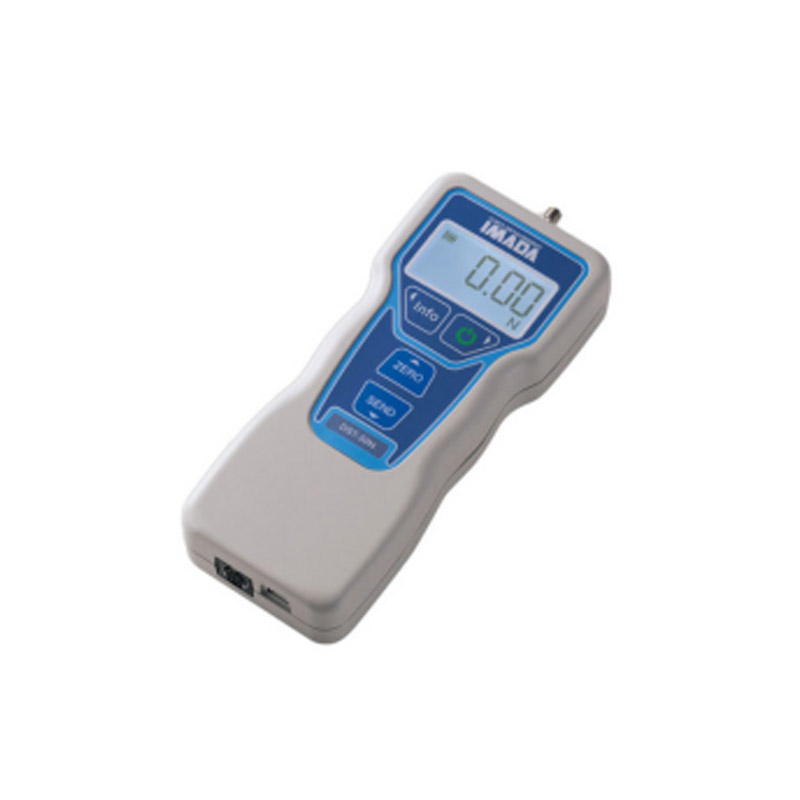

Digital Force Gauge

Applications:

IMADA Digital Force Gauge can measure tension, compression force accurately, and durable, is an ideal product for industrial quality control, research and development field strength test. All kinds of models has the zero adjustment for tare weight, and the scale dial is easy to read. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.

Standards:

EN-71-1 section 8.4, 8.6, 8.8, 8.13, 8.15, 8.25.2, 8.26.1.1, 8.26.3, 8.34, 8.36
ASTM F963 section 8.9, 8.10, 8.11, 8.16, 8.18.8
16CFR 1500 section 51, 52, 53
ISO 8124-1 section 5.19, 5.24.6, 5.24.7, 5.24.8, 5.31
GB6675-2 section 5.19, 5.24.6, 5.24.7, 5.24.8

Key Specifications

Model	DST series
Accuracy	±0.2% F.S. ±1 digit
Unit of measurement	N/kfg/lbf
Display	4-digit LCD
Sampling rate	1000 data / sec. (max)
Display update	10 times / sec.
Safe overload rating	Approx. 200%F.S.
Function	Peak hold/Comparator/Display reverse/Damping(2 levels)
Power	Nicd rechargeable batteries and external AC adapter
Battery life	Approx. 10 hours(Approx.10-hour charge)
Operating temperature	0 to +40 degree Celcius
Operating humidity	20 to 80% RH
Weight (approx.)	460g
Output	Digital (RS232C), Mitutoyo Digimatic, analog (+/-1VF.S.)

Model	Capacity	Display	Resolution	Thread
DST-2N	2N (200gf)	2.000N (200.0gf)	0.001N (0.1gf)	M6
DST-5N	5N (500gf)	5.000N (500.0gf)	0.001N (0.1gf)
DST-20N	20N (2kgf)	20.00N (2.000kgf)	0.01N (0.001kgf)
DST-50N	50N (5kgf)	50.00N (5.000kgf)	0.01N (0.001kgf)
DST-200N	200N (20kgf)	200.0N (10.00kgf)	0.1N (0.01kgf)
DST-500N	500N (50kgf)	500.0N (51.00kgf)	0.1N (0.01kgf)
DST-1000N	1000N (100kgf)	1000N (100.0kgf)	1N (0.1kgf)

*lbf indication is also possible.

Standards accessories	1pc	6 kinds of attachments
	1pc	AC adapter
	1pc	Carrying case
	1pc	Instruction manual
	1pc	Inspection certificate

Applications Industry

The following products can be tested on the Digital Force Gauge

Gester IMADA pull tester
