High Chair Back and Arm Impact Tester
High Chair Back and Arm Impact Tester High Chair Back and Arm Impact Tester High Chair Back and Arm Impact Tester High Chair Back and Arm Impact Tester High Chair Back and Arm Impact Tester

High Chair Back and Arm Impact Tester GT-MJ02

(Toys Testing)

  • Item NO.:

    GT-MJ02
  • Lead Time:

    30 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    EN 14988-2 section 6.2
Description

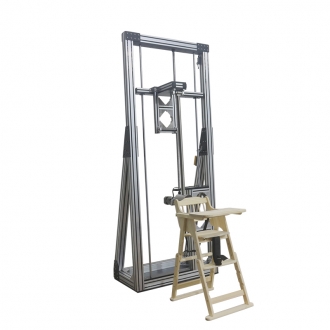

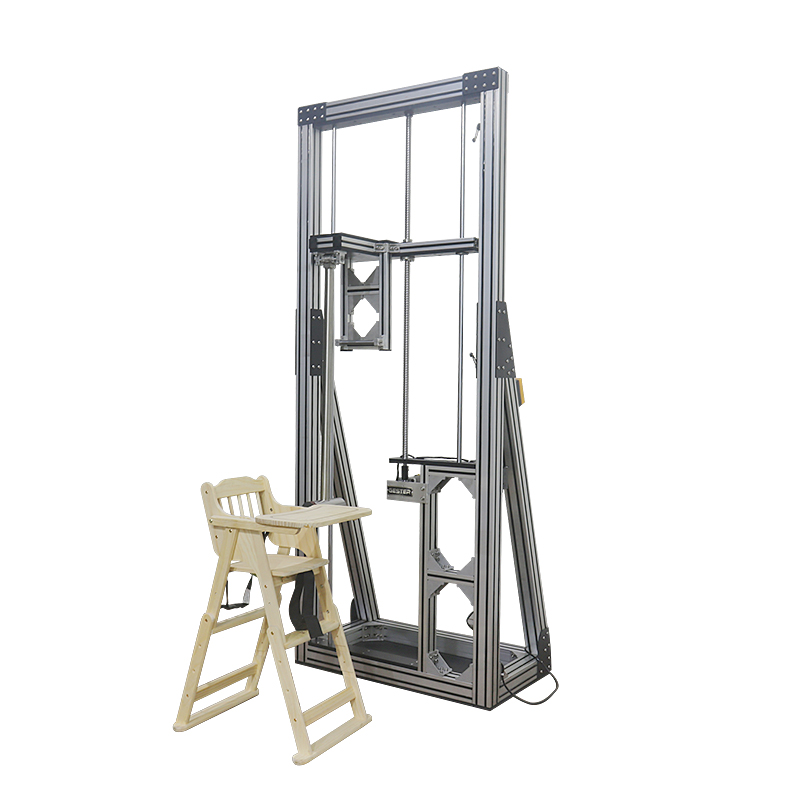

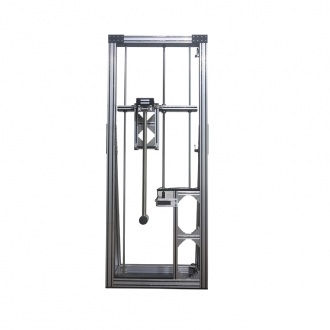

High Chair Back and Arm Impact Tester GT-MJ02

Applications:

This chair testing machine is specially designed for testing the impact strength of backrest and handrail.






High Chair Back and Arm Impact Tester Standards:

EN 14988-2 section 6.2




Feature

1.The High Chair Back and Arm Impact testing machine main structure is made of aluminum, which is beautiful and easy to maintain.

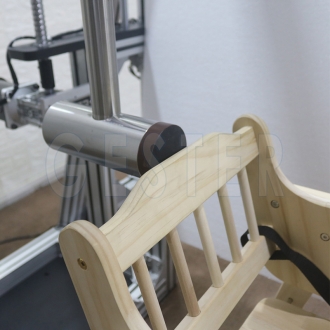

2.The height of the impact pendulum can be adjusted, which could test chairs with different height.



Specification

Model

GT-MJ02

Pendulum head

Diameter: ∅ 76mm, Weight:(6.5 ± 0.07) kg

Pendulum arm

Steel tube ∅ 38 x T 2mm,Weight2 kg ± 0.2 kg,Length950mm

Impact times

10 times

Dimensions(W x D x H)

100×80×220cm

Weight

Approx. 25kg


Accessories

Standard accessories

1pc

Stops

Optional accessories

4pc

GT-M35A EN Drop Tester
