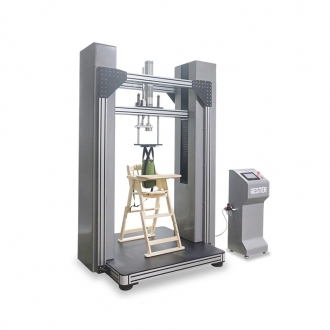

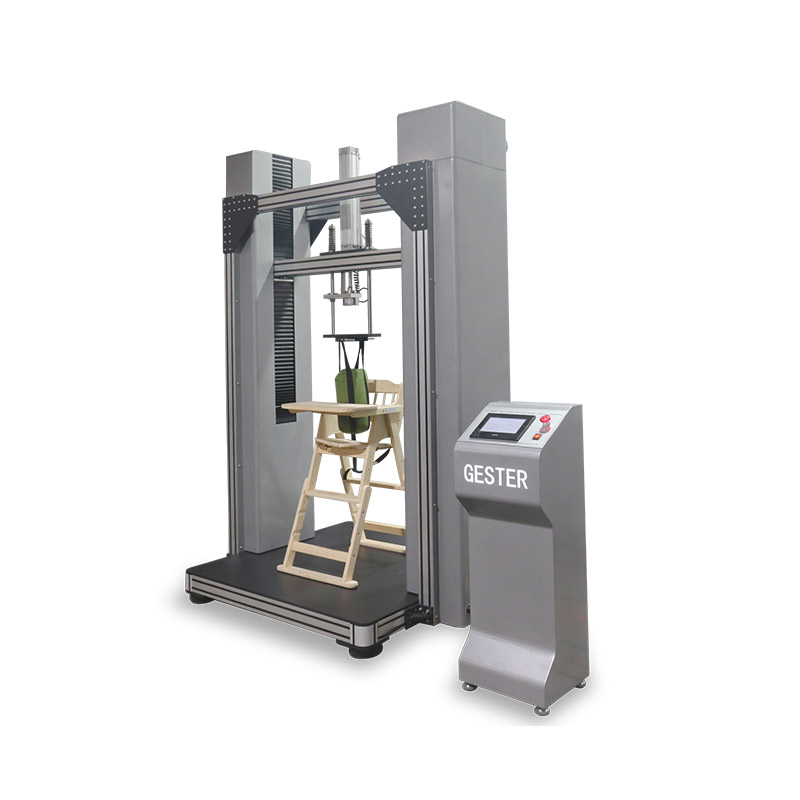

High Chair Seating Impact Testing Machine

High Chair Seating Impact Testing Machine GT-MJ31

(Toys Testing)

Item NO.:
GT-MJ31
Lead Time:
30 days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN14988-2017 Section 5.17, 8.8.5

Contact Now

Description

Applications:

This tester applies to all types of high chairs, with 2 functions of chair seating impact and seating durability test.

The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.

Standards:

EN14988-2017 Section 5.17, 8.8.5

Feature

1.The main structure of the machine is made of aluminum, beautiful and easy to maintain.

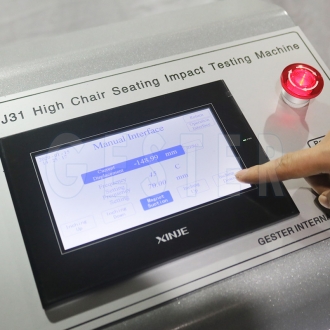

2. Using PLC touch screen control, operation more convenient.

3. In addition, the machine loading device using electric control movements, more extensive test space.

Key Specifications

Model	GT-MJ31
Impactor Diameter	150mm
Impactor Weight	23kg
Cylinder Stroke	0~300mm
Beam Stroke	900~1350mm
Test Speed	10~30r/min
Test Times	0~999999times, settable
Control	PLC touch screen control
Dimensions(W×D×H)	150×150×200cm
Weight	≈300Kg
Air Source	≧7kgf/cm^2 stable air source
Power	1∮ AC 220V 50Hz 5A

Accessories

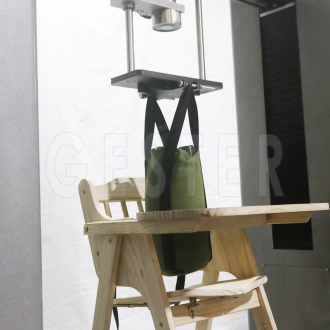

23kg Impactor

1pc
