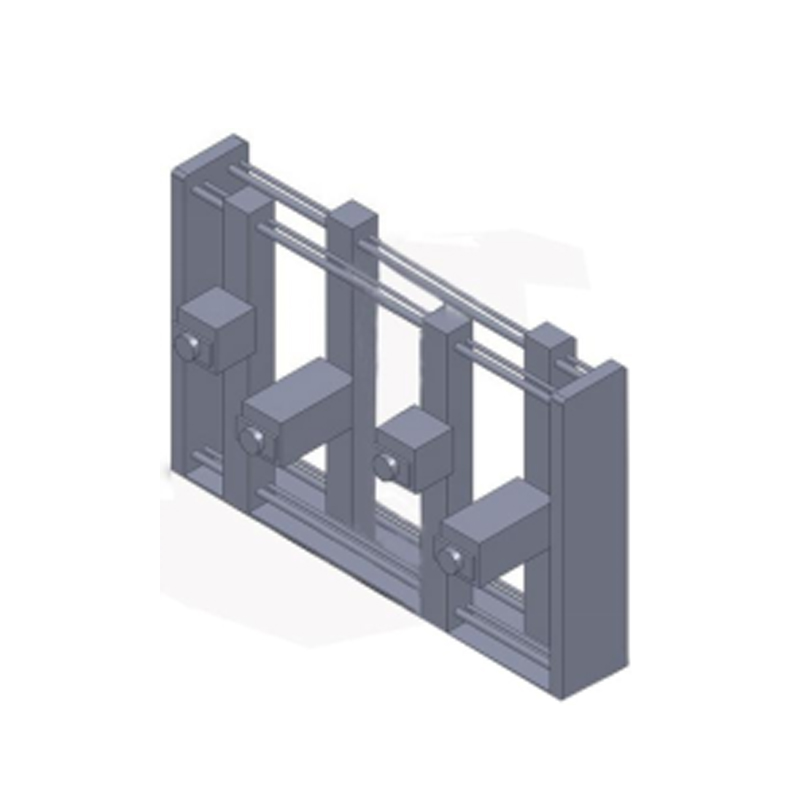

Horizontal Thrust Tester GT-ME72

(Children Products Tester)

Contact Now

Description

Applications:

Horizontal Thrust Locator: consist of Tension bar and steel structure.

This tester is applicable to assess children's amusement facilities activity toys (such as climbing frame, swings, etc.) stability performance.

Principle:

Simulate the children climbing toys, apply a horizontal force on the toys top, to check whether the toy tips over.

Simulate the children swing Toys (such as swings), apply a horizontal force on the toys top, to check whether the toy tips over.

Standards:

ISO 8124-4

EN71-8

Feature

Specification

Model	GT-ME72
Driving Mode	Servo motor + air cylinder
Control Method	PLC+Touch Screen
Capacity	3000N
Load Loading Direction	Horizontal
Loading Groups	Four groups, single group or multigroup any combination
Loading Methods	Confirm the force values
Force Accuracy	Dynamic ±5%
Force Resolution	1/1000
Loading Stroke	28cm
Loading Point Height	30~180cm
Test Speed	0~500mm/min can be set
Lifting Speed	800mm/min
Loading Time	0 ~ 9999 can be set
Units	kgf, Lbf, N, KN. ( can be change)
Dimension	280x120x240cm(WxDxH)
Weight(Approx.)	≈650Kg
