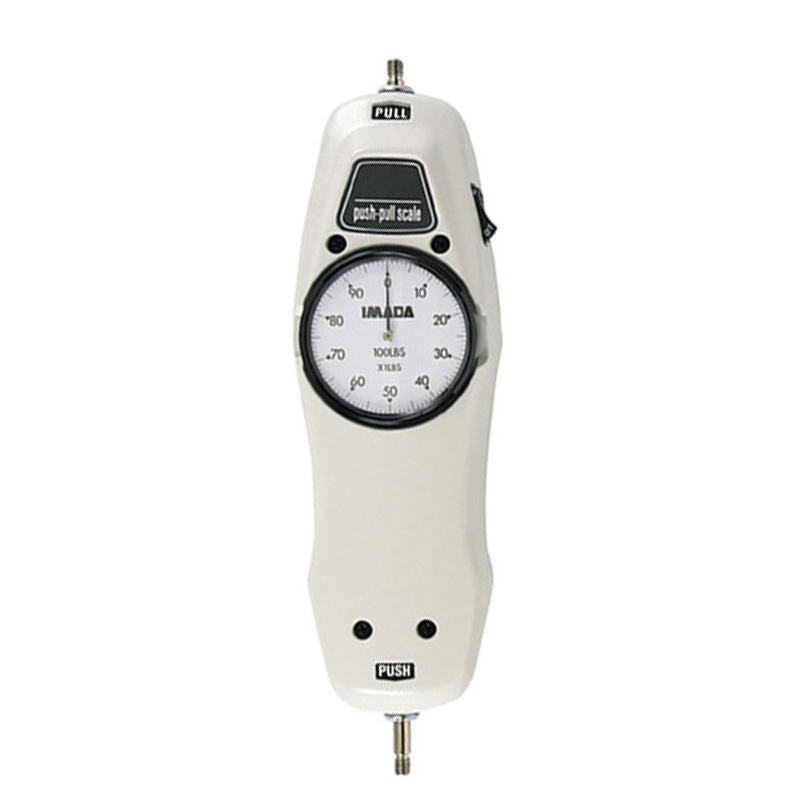

IMADA Push Pull Scale

(Toys Testing)

Item NO.:
GT-IMADA
Lead Time:
5 days
Brand:
GESTER
Payment:
TT or L/C
Shipping Port:
Xiamen Port

Contact Now

Description

Force Gauge

Applications:

IMADA Push Pull Scale can measure tension, compression force accurately, and durable, is an ideal product for industrial quality control, research and development field strength test. All kinds of models has the zero adjustment for tare weight, and the scale dial is easy to read. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.

Standards:

EN-71-1 section 8.4, 8.6, 8.8, 8.13, 8.15, 8.25.2, 8.26.1.1, 8.26.3, 8.34, 8.36

EN 16890-2017 Section 8.1.2, 8.1.3, 8.2.1, 8.3.1, 8.3.2

ASTM F963 section 8.9, 8.10, 8.11, 8.16, 8.18.8

16CFR 1500 section 51, 52, 53

ISO 8124-1 section 5.19, 5.24.6, 5.24.7, 5.24.8, 5.31

GB6675-2 section 5.19, 5.24.6, 5.24.7, 5.24.8,

Feature

Durable, high precision, using a unique indicator design and spring material;
Bionic design for holding conveniently;
All kinds of models have peak hold function;
Including 6 kinds of accessories and Carrying case.
Aluminum alloy Shell;
Zero adjustment for tare weight;
Reading is convenient;
Size of packing box: Box dimension: 31 x 17 x 6cm & Box with gauge weight: 1.2kg

push pull tester imada

Key Specifications

Model	Capacity	Graduation	Thread
FB-10N	10N	0.1N	M6
FB-20N	20N	0.2N
FB-30N	30N	0.25N
FB-50N	50N	0.5N
FB-100N	100N	1N
FB-200N	200N	2N
FB-300N	300N	2.5N
FB-500N	500	5N
FS-1K	1kgf	10gf
FS-2K	2kgf	20gf
FS-3K	3kgf	25gf
FS-5K	5kgf	50gf
FS-10K	10kgf	100gf
FS-20K	20kgf	200gf
FS-30K	30kgf	250gf
FS-50K	50kgf	500gf
FB-5lb	5lb	0.05lb
FB-10lb	10lb	0.1lb
FB-20lb	20lb	0.2lb
FB-30lb	30lb	0.25lb
FB-50lb	50lb	0.5lb
FB-100lb	100lb	1lb

Applications Industry

The following products can be tested on the IMADA Push Pull Scale

Applications of IMADA Push Pull Scale
