Inclined Platform Tester
Inclined Platform Tester

Inclined Platform Tester GT-MS04

(Toys Testing)

  • Item NO.:

    GT-MS04
  • Brand:

    GESTER
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    BS EN1273-2020section 4.5,8.10.1, EN1466-2014 section7.1.2.3.2, 7.8.1.2
Description

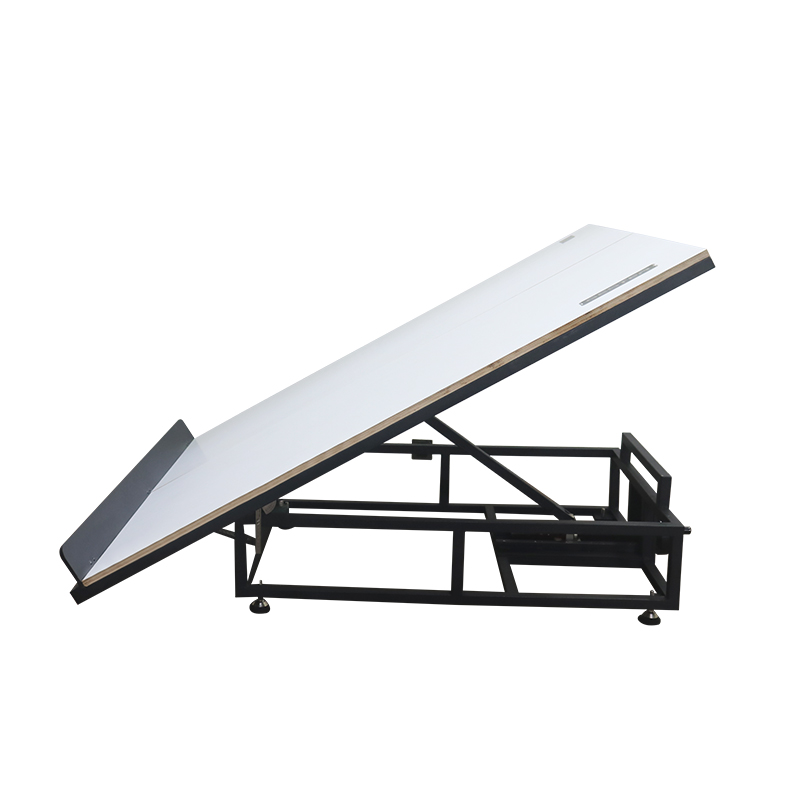

Inclined Platform Tester GT-MS04

Applications:

For this Inclined Platform Tester, the tilt angle of the ramp is adjustable. The angle adjustment range is 0 ~ 45degree.

Inclined Platform Tester Can be used to assist test the baby walking frames etc., need to used with specified weight.




Standards:

BS EN1273-2020section 4.5,8.10.1, EN1466-2014 section7.1.2.3.2, 7.8.1.2



Key Specifications

Model

GT-MS04

Ramp degree

0~45degree (adjustable)

Angle adjustment way

Manual operation

Dimensions (L×D×H)

1300×1700×1000mm

Weight

100kg

Accessories

Standard Accessories

1pc

Block (Height: 100mm)

Optional Accessories

1pc

GT-MS01 Test Mass A

1pc

GT-MH01 Test Mass A

1pc

GT-MH08 Test Bar
