Folding Endurance Tester
Folding Endurance Tester Folding Endurance Tester Folding Endurance Tester

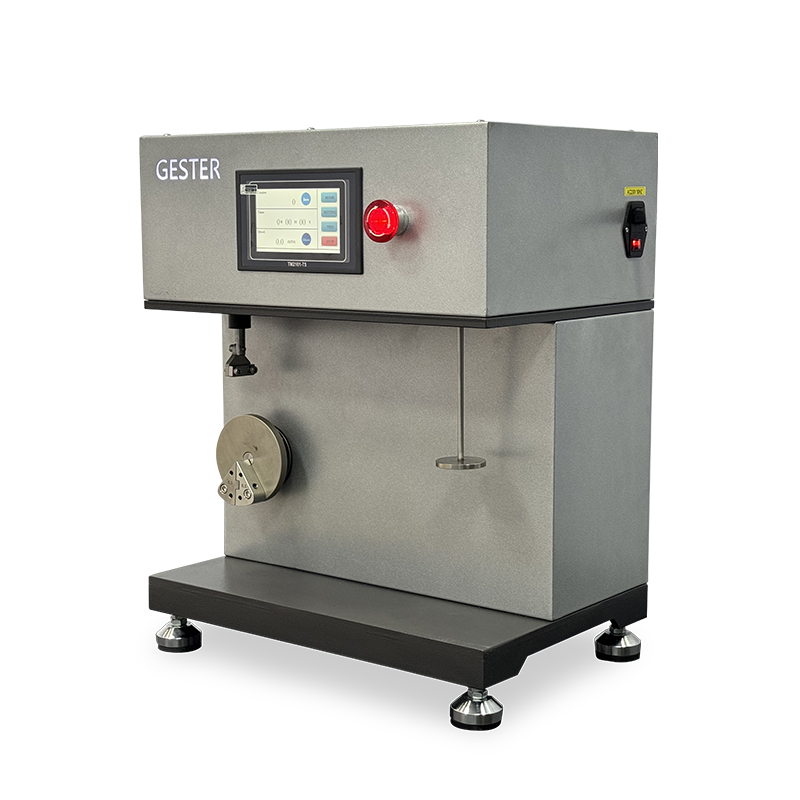

MIT Type Folding Endurance Tester GT-N16

(Furniture Testing Equipment)

  • Item NO.:

    GT-N16
  • Lead Time:

    20-30 days
  • Brand:

    GESTER
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    ISO 5626, GB/T 2679.5, QB/T 1049
Description

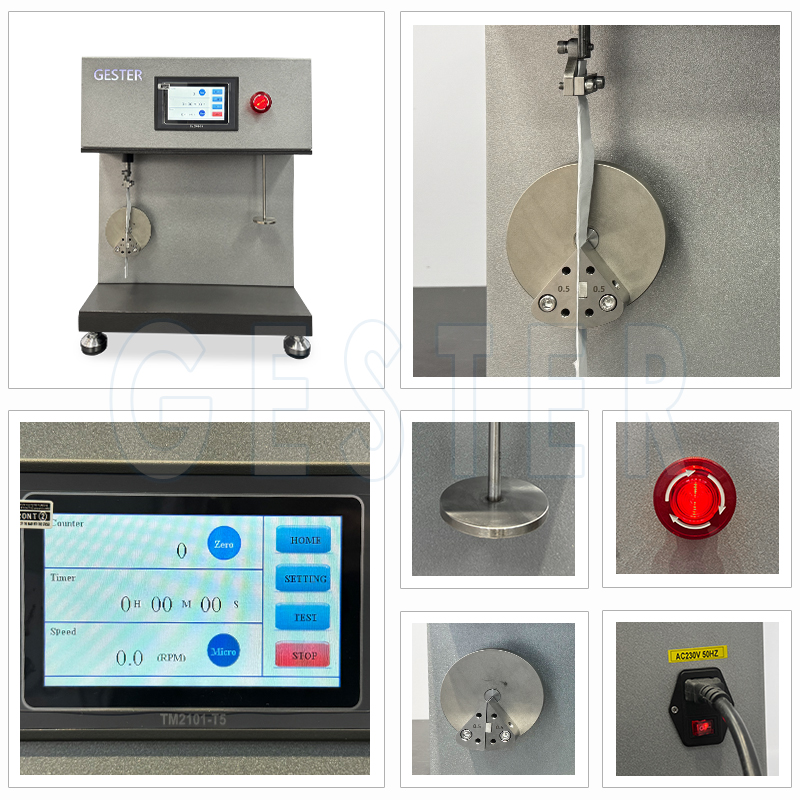

MIT Folding Endurance Tester

Applications:

MIT Type Folding Endurance Tester has various functions, such as, parameter testing, parametric transformation, parameter regulation, parameter display, parameter memory and parameter print. The tester has data processing function which can directly output result of statistical data with convenient operation, easy regulation and stable performance. The main functions are shown as following , compact structure, light weight, abundant functions, horizontal type and stable performance, so the tester is suitable for different paper and boards.




Standards:

ISO 5626, GB/T 2679.5, QB/T 1049




Key Specifications:

Measuring Range

0 - 99999

Folding Angle

135±2°, Folding Frequency: 175±10 times/min

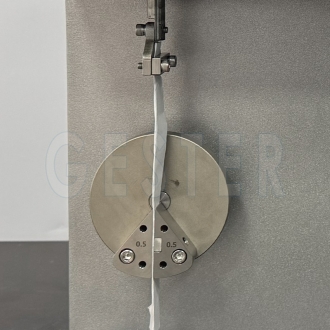

Folding Head Width

19±1mm; Folding Radius: 0.38±0.02mm

The spring tension

4.91N~14.72N, when every 9.81N tension is added, the compression of spring is 17 mm reduced at least

The clearances between folding ports

0.25, 0.50, 0.75 and 1.00mm (four ranges)

The tension change due to the eccentric rotating of clamping folding head

Should not be larger than 0.343N
