Mouth-actuated Catapult Toy Endurance Tester GT-M04

(Toys Testing Equipments)

  • Item NO.:

    GT-M04
  • Lead Time:

    25day
  • Brand:

    GESTER
  • Payment:

    TT or L/C
Description

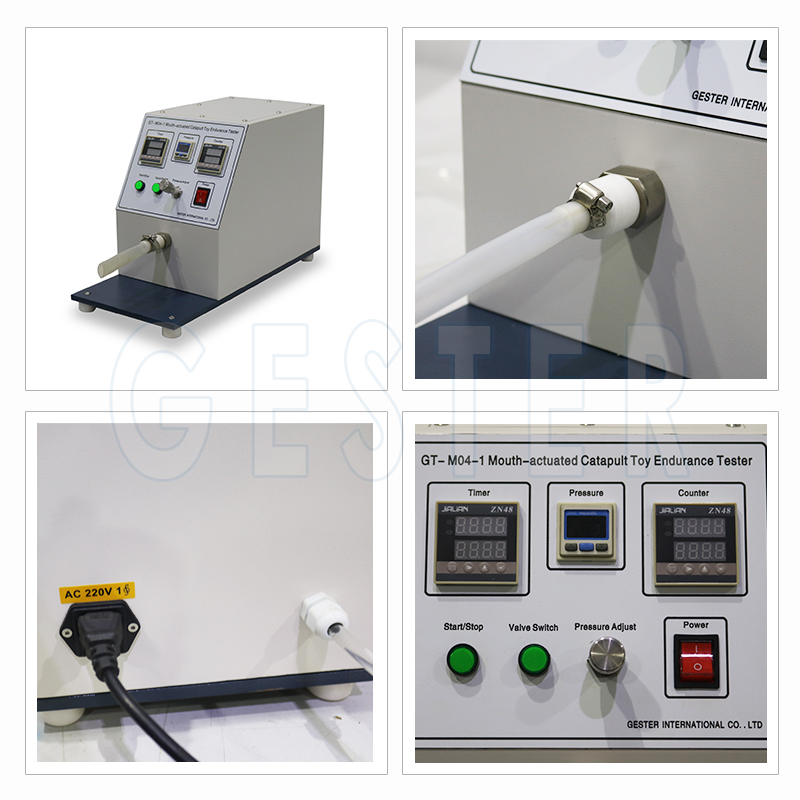

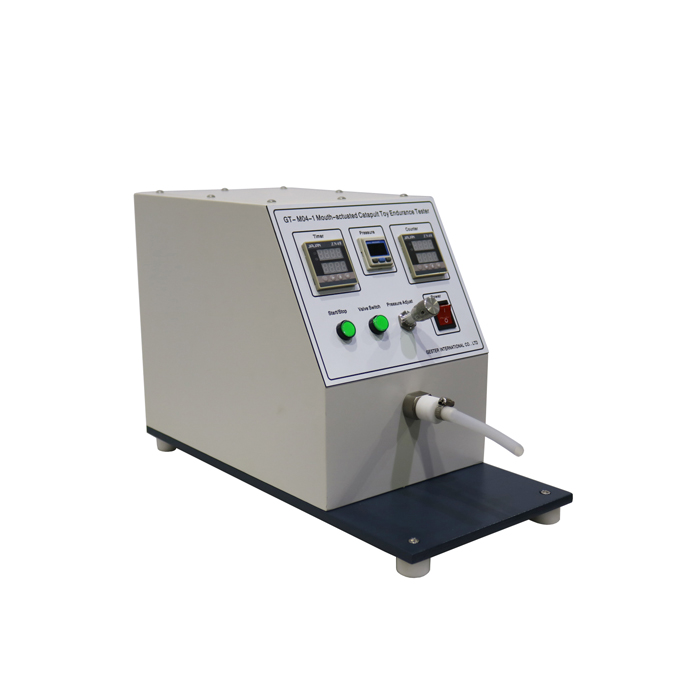

Mouth Actuated Toys Tester GT-M04

Applications:

This Mouth-actuated Catapult Toy Endurance Tester GT-M04 is used to test mouth-actuated projectile toys’ blowing resistant properties.


Test Principle:

The catapult was placed into the mouth-actuated projectile toys. Add pressure of 13.8kPa ± 5% on the mouthpiece, lasts for 5 seconds, test a total of 10 times. Detecting whether the projectile through the mouthpiece.



Key Specifications:


Model

GT-M04

Test air pressure

13.8 Kpa

Hold time

5s

Testing times

10 times

Power Supplier

AC 220V  50HZ

Accessories

Tube gripper  -3pcs

Standards

EN-71-1 section 8.17.1


Mouth-actuated Catapult Toy Endurance Tester
