Outdoor Plastic Chair Testing Machine GT-LB50

(Furniture Testing)

  • Item NO.:

    GT-LB50
  • Lead Time:

    20-30 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
Description

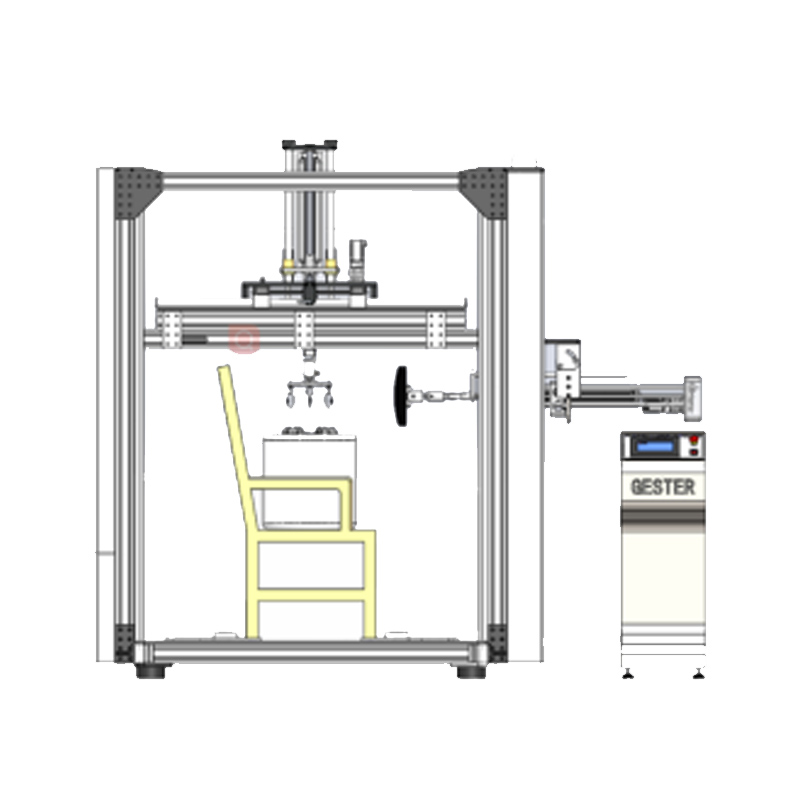

Chair Armrest Durability Testing Machine

Applications:

The tester is used for the impact test, static load test and rear leg test of the outdoor plastic chairs according to ASTM F1561 & ASTM F1838.

Feature

1.The main structure of the machine is made of aluminum, beautiful and easy to maintain.

2. Using PLC touch screen control, operation more convenient.

3.The machine is equipped with two air cylinders. One is in the vertical direction, responsible for lifting and releasing the impact bag; the other is in the horizontal direction, responsible for pushing the sandbag horizontally.

4. The beam of this machine can be electrically lifted, and the horizontal loading cylinder is also equipped with electric lifting to adjust the height position, making it suitable for samples of different heights.


Key Specifications

Model

GT-LB50A

GT-LB50B

Impactor Diameter

406mm

228mm±2mm

Impactor Weight

Max. 400LBS(35*10LBS+10*5LBS)

(can be freely combined)

Max.150LBS(10*10LBS+10*5LBS)

(can be freely combined)

Standards

ASTM F1561-2014

Section 8.4, 8.5, 8.6, 9.4, 9.5 ,9.6

ASTM F1838-2019

Seat surface Height

15 - 70cm

Testing Time

0-99999 ( can be adjustment)

Control Method

PLC touch screen control

Lifting Method

Automatic lifting

Air Source

≧7kgf/cm^2 stable air source

Power

1 phase AC 220V 50/60Hz

Dimension (WxDxH)

180x150x200cm

Weight

550kg



Accessories


Standard Accessories

GT-LB50A

GT-LB50B

GT-LB01-11A Canvas bag

1pc

1pc

GT-LB01-11B Sandbag

35pcs*10LBS

10pcs*10LBS

GT-LB01-11C Sandbag

10pcs*5LBS

10pcs*5LBS

Stationary Fixture

1pc

1pc

Stops

1set

1set


Applications Industry

All kinds of chair products can be tested on the Chair Armrest and Seat Front Edge Testing Machine
