Applications:

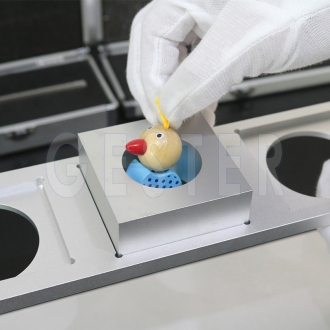

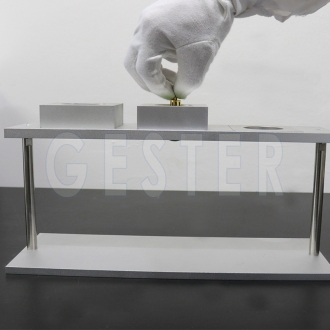

Rattle test is a simulation of children’s oral cavity capacity, used to test whether toys or the parts of toys may cause choking or swallowing. Mainly used in toys intended for children who are too young to sit up unaided.
Standards:
EN-71-1
ASTM F963
16CFR 1510
ISO 8124-1
GB 6675-2
|
Such as：
-
Hand-held activity toys;
-
Books and building blocks covered by textile or vinyl;
-
Rattle-shaped toys and squeeze toys with or without noise making features;
-
Teethers, toys or components intended to be chewed on;
-
Removable components of toys intended to be strung across a crib, playpen or perambulator;
-
Removable components of baby gyms;
-
Legs of baby gyms.
-
Play figures
Note: The tester do not apply to soft-filled parts of a toy or parts of fabric. And do not apply to rigid elements having a major dimension equal to 30 mm or less.
Testing requirements：
GT-M46A (Template A) : For such toys having a mass of 0.5 kg or less, no part of the toy shall protrude past the base of Template A
GT-M46B (Template B) : For such toys with nearly spherical, hemispherical or circular flared ends having a mass of 0.5 kg or less, no part of the toy shall protrude past the base of Template B.
Key Specifications
|
Model
|

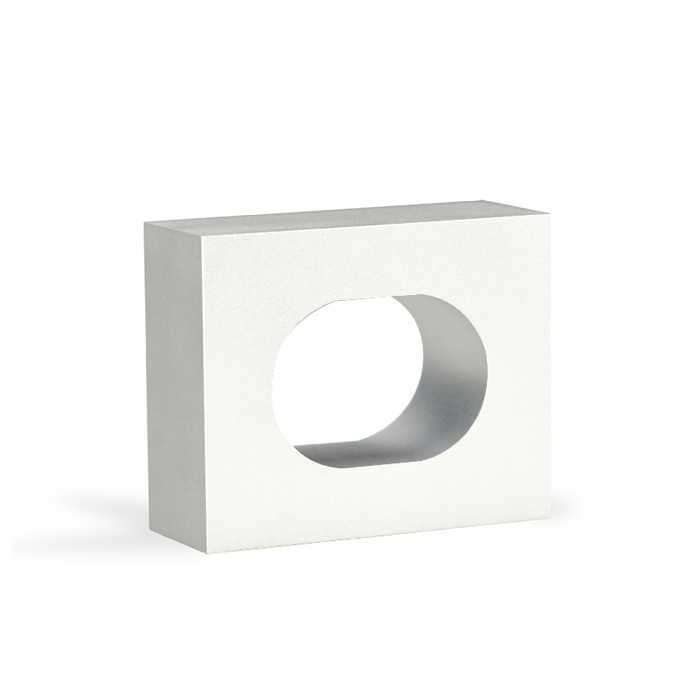

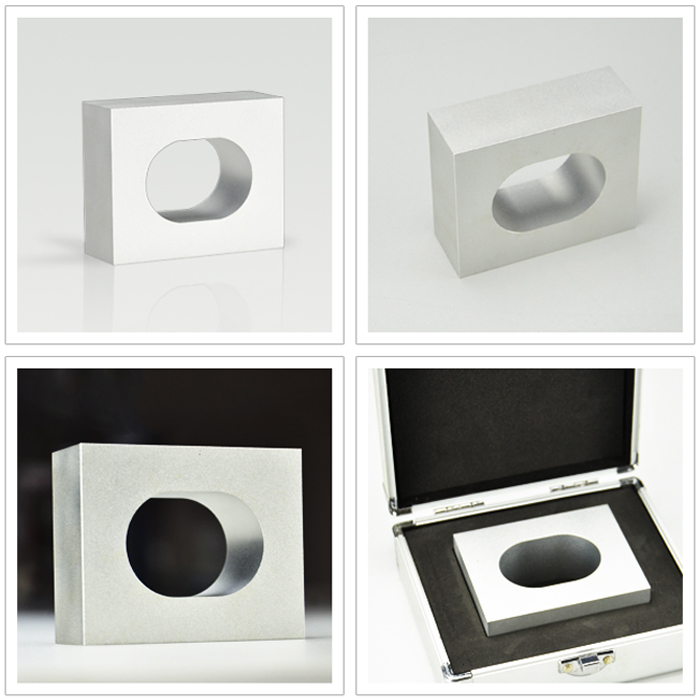

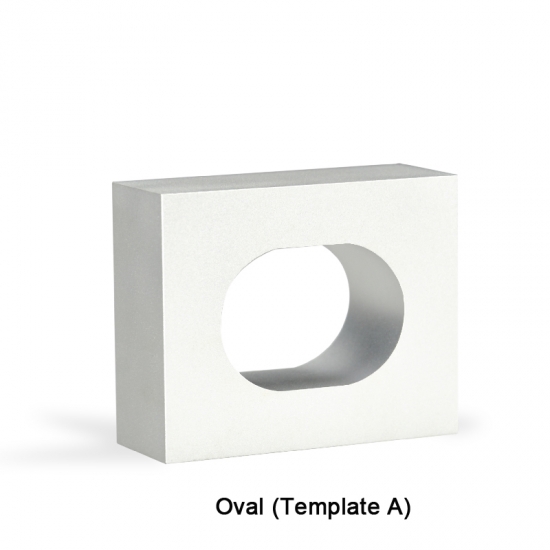

GT-M46A Oval (Template A)
|

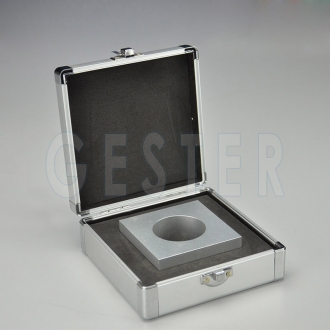

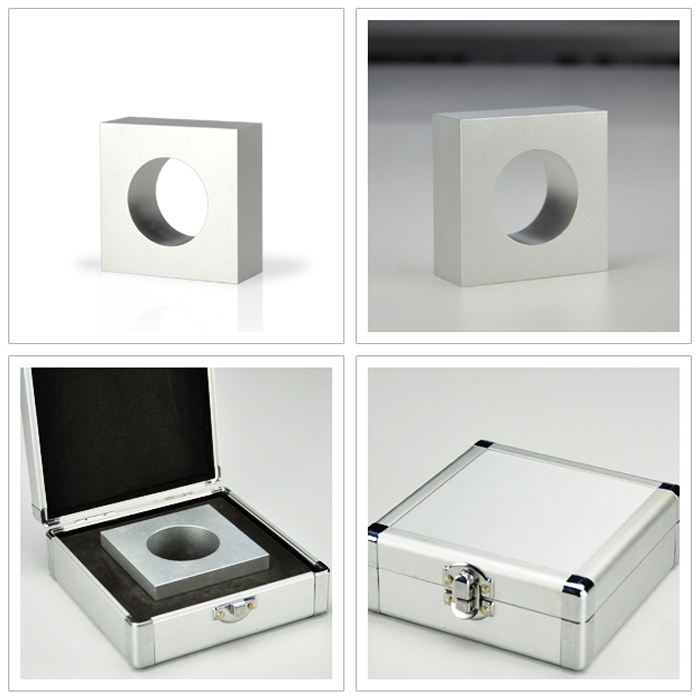

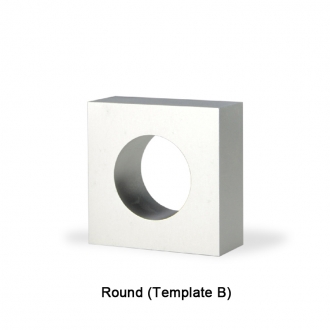

GT-M46B Round (Template B)
|
|
Inside hole radius/ Inner Diameter(mm)
|
17.5+0/-0.05
|
42.7+0/-0.1
|
|
Width(mm)
|
65±2
|
73±2
|
|
Inside Hole Width(mm)
|
35mm
|
/
|
|
Inside Hole length(mm)
|
50+0/-0.1
|
/
|
|
Length(mm)
|
80±2
|
73±2
|
|
Thickness(mm)
|
30+0.1/-0
|
30+0.1/-0
|
|
Material
|
Aluminum metal alloy, surface oxidation
|
|
Standards
|
EN-71-1 section 8.16
ASTM F963 section 4.22.1, 4.23, 4.24
16CFR 1510
ISO 8124-1section 5.3
GB6675-2 section 5.3
|
EN-71-1 section 8.16 and 8.33
ASTM F963 section 4.22.2, 4.24.2, 4.32
16CFR 1510
ISO 8124-1section 5.3, 5.6
GB6675-2 section 5.3, 5.6
|
|
Weight
|
500g
|
500g
|
Applications Industry
All kinds of children products can be tested on the Rattle Test Template
