Small Ball Test Template GT-M47

(Toys Testing)

Item NO.:
GT-M47
Lead Time:
20-30 days
Brand:
GESTER
Payment:
L/C or T/T
certificate:
ISO 9001, UKAS, CE
standard:
EN-71-1, ASTM F963, ISO 8124-1, GB6675-2

Contact Now

Description

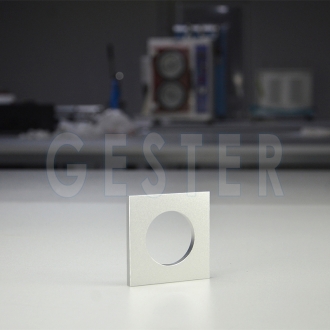

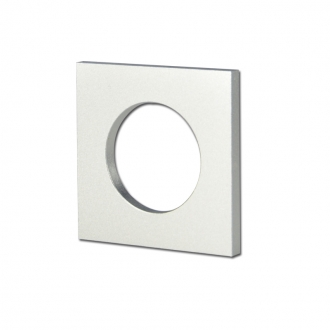

Small Ball Test Template

Applications:

Small Ball Test Template is use to examine a toy up of whether small ball accessories may result in the child swallow, stop breath way and esophagus to cause choking danger or not. mainly used to test suction cups toy and ball toy or toys parts.

Standards:

EN-71-1

ASTM F963

ISO 8124-1

GB6675-2

Test Method

Position and clamp Template C so that the axis of the slot is substantially vertical and the slot is unobstructed at its top and bottom openings.
Place the ball or the suction cup or the toy with an attached suction cup without compressing it, in any orientation in the slot so that the force on the ball or suction cup or toy with an attached suction cup is only the force due to its mass.
Determine whether the ball or suction cup or toy with an attached suction cup passes entirely through Template C.

Key Specifications

Model	GT-M47
Material	Aluminum metal alloy, surface oxidation
Inner diameter	44.5mm
Dimensions (L x W x T)	72.6 x 72.6 x 6.35 mm
Weight	30g
Standards	EN-71-1 section 8.32 ASTM F963 section 4.34 and 4.35 ISO 8124-1section 5.4 and 5.5 GB6675-2 section 5.4 and 5.5
Optional accessories	GT-MB60 Rattle Test Template Stand

Small Ball Test Template GT-M47

Applications Industry

Many kinds of ball toys can be tested on Small Ball Test Template.

Small Ball Test Template GT-M47

Why Choose Us

Small Ball Test Template GT-M47
