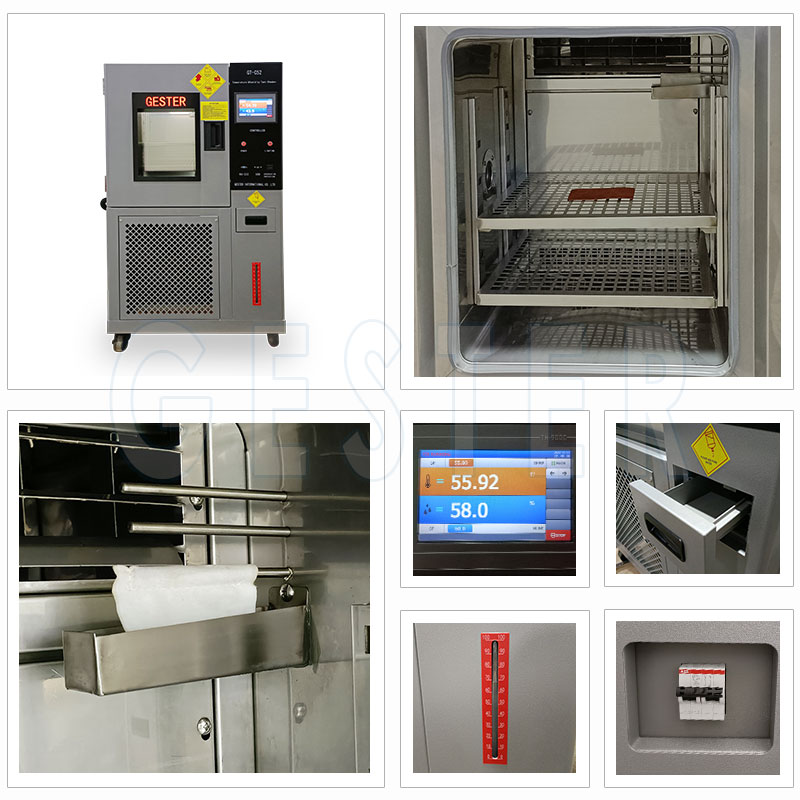

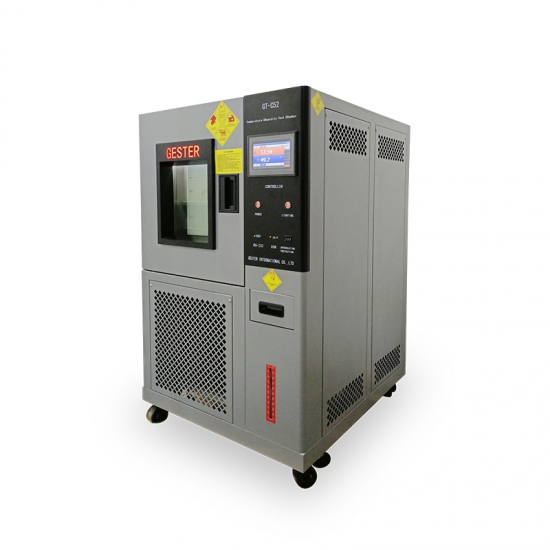

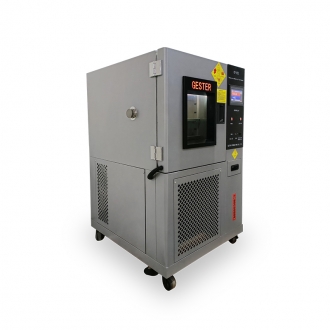

Temperature Humidity Chamber GT-C52 Environmental Chamber Manufacturer

(Furniture Testing)

Item NO.:
GT-C52
Lead Time:
20-30days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE

Contact Now

Description

climatic test chamber

Applications:

The ‌Constant Temperature and Humidity Chamber‌ is a precision environmental chamber designed to simulate specific temperature and humidity conditions, ensuring reliable performance evaluation of materials and products.

Control System

Touch screen, 680 temperature controller.
Control mode: Touch pad.
Display: LCD display, programmable.
System capacity:120 groups program X100 sections, required segmentation sections of each group can be arbitrarily divided and each program can freely link another.
Cycle setting: each operation procedure can carry out 9999 times or heaps of times cycle and repeated performance, and to the degree, divide further 5 segmentation sections to do part cycle of the extra.

Test Space Options:

Capacity

80L

150L

225L

408L

612L

1000L

Inside dimension

WxDxH(cm)

40x40x50

50x50x60

75x60x50

80x60x85

80x85x90

100x100x100

Outside dimension

WxDxH(cm)

91x100x139

100x110x149

125x120x139

130x122x182

130x153x190

150x167x189

Temperature Humidity Chamber Key Specifications

Temperature range	-20～150℃, -40～150℃, -60～150℃ optional (can be custom-made)
Humidity range	20%～98%, can be set.
Temperature & Humidity Chart
Rate of temperature increasing	Room temperature～150℃ For heating in average (without loading)	About 45 mins	About 3.5℃/min
	Room temperature～-20℃ For cooling in average (without loading)	About 45 mins	About 1.2℃/min
Machine precision	Control accuracy (test precision)	Temperature	±0.5℃
		Humidity	±1%RH
	Distribution accuracy (uniformity)	Temperature	±1.0℃
		Humidity	±2%RH
Environment temperature	5℃-28℃
Environment relative humidity	≤ 85%RH
Frequency	50+/-0.5Hz
Power switch	Air-break switch(40A, knife switch or outlet is prohibited to use.)
Power	4.5KW
Humidification water	Resistivity(≥500MΩ)
Requirement of ambient air quality	Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby.
Power supply	AC 220V/380V
Max loading capacity	8KVA
Max operating current	30A
