Toys Kinetic Energy Tester New GT-M18B

(Toys Testing Equipments)

  • Item NO.:

    GT-M18B
  • Lead Time:

    20-30 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    ISO 8124-1, GB6675-2, EN-71-1,ASTM F963
Description


Kinetic Energy Tester

Applications:

This Kinetic Energy tester is used to detect the maximum kinetic energy generated by the fired bullets of Projectile toys or the launched bows, thereby to determine whether the toy projectiles would harm the child.




Standards:

ISO 8124-1 section 5.15
GB6675-2 section 5.15
EN-71-1 section 8.24
ASTM F963 section 8.14

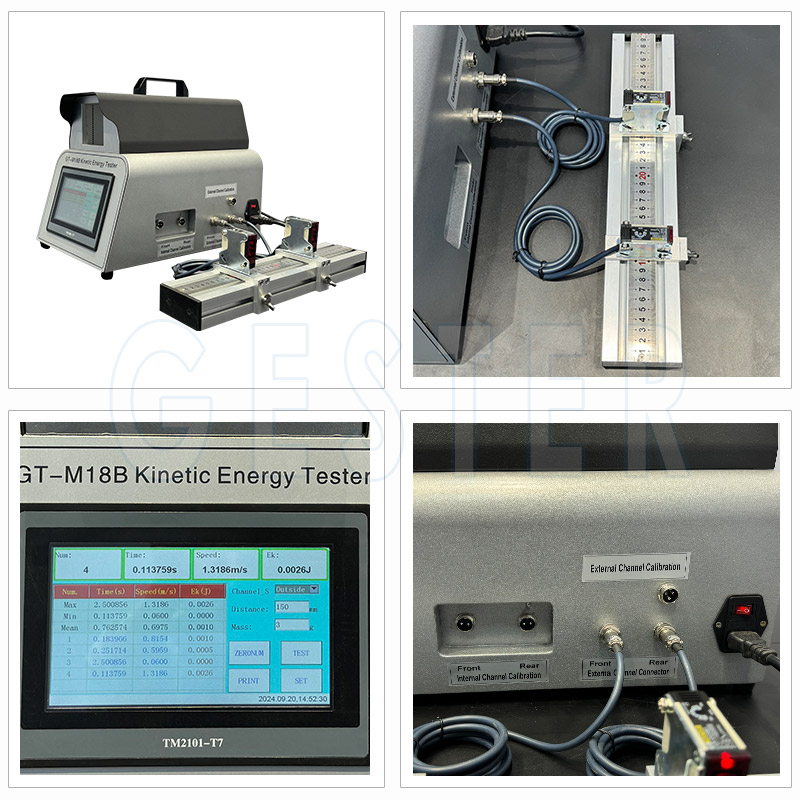

Feature

1.Configured large color screen, can display a graph of five tests.
2.This machine configured with two measurement channels, inner and outer sensor channel, adapt to the testing of different sizes toys.
3.The use of microcomputer control, can input the weight of the tested object, sensor spacing and etc., automatically calculates the test speed, kinetic energy, the maximum and average value.
4.Configure thermal printer, can print the experimental result.

Kinetic Energy Tester


Key Specifications

Model

GT-M18B

Display

LED Display, Time, Speed, Kinetic Energy Value, Average, Max Value

Printer

Thermal Printer

Time accuracy

0.0000001s

Energy accuracy

0.000001J

Internal channel

10cmx10cm

Internal sensor distance

300 mm

Internal channel projectile diameter

2mm~80mm

External sensor distance

25~330mm( Adjustable)

Cooling methods

More than 150 natural cooling, less than water-cooled or natural cooling

Dimension (including sensor)

43×37.5×28cm

Dimension (excluding sensor)

40×31×28cm

Weight (approx.)

10Kg



Applications Industry

 All kinds of Rojectile Toys can be tested on the GT-M18B Kinetic Energy tester
