Applications:

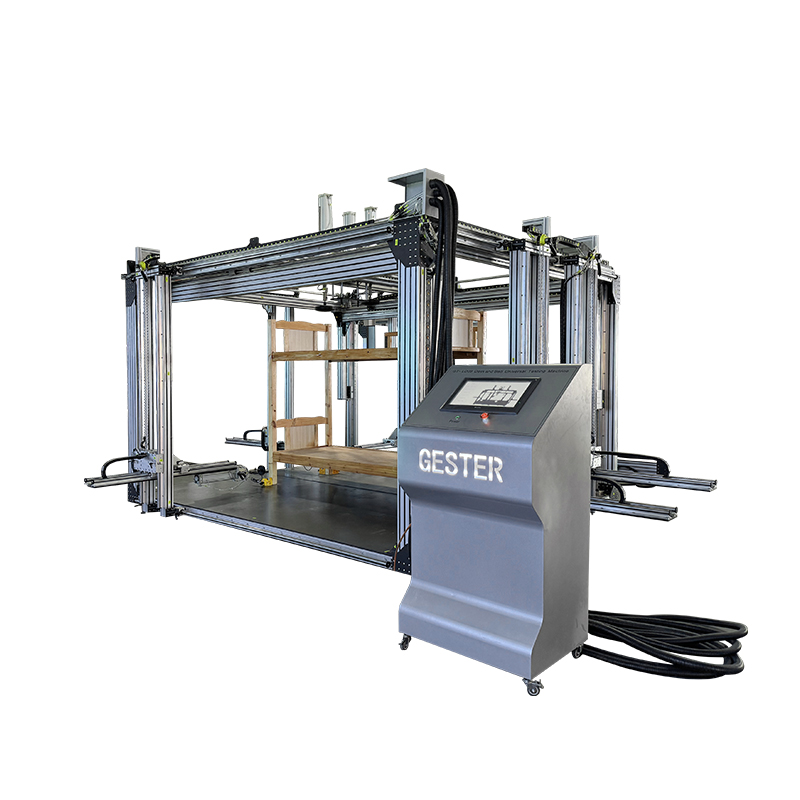

This Furniture Testing Machine is designed to evaluate the structural integrity and durability tables, desks, beds, cribs, and chairs. It supports comprehensive testing modes such as horizontal/vertical static load tests, impact resistance assessments, and long-term durability simulations.
|
Standards
|
Tables & Desks&Storage Units
|
EN1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 7.2, 7.3 ,
BS EN 15372-2016 Test1, Test2,Test3,Test5, Test6,Test8,Test10,
AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R
AS NZS 4442-1997 Annex A,B,H,J
EN527-3, EN581-3,
GB/T 10357.1,
ISO 7170 Section 6.2.2, 6.4.1,7.5.2
BS4875-7(corresponding with ISO7170)
|
|
Chairs& Stool
|
EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 6.24, 7.3, 7.4, 7.9, 8.2, 8.4.1,8.5 , 8.8
EN581-2-2015 (corresponding with EN1728-2012),
EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1
EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, 5.3.7
EN 16139-2013 (corresponding with EN1728-2012)
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8, 7.10
BS5459-2-2000 Section A5.1 5.2
BS5459-2-2000 Section A5.2,
GB/T 10357.3 -2013 Section 4.3, 6.4,4.7,4.8,4.10,4.11,6.9
|
|
Bed
|
EN 1725-2023 Section 6.6 TEST 1,2,3,4,5,6,7,8,12
EN 747-2 Section 5.4,5.5,5.6.1,5.7,5.8
ISO198833-2018Section 6.2,6.3.1,6.3.2,6.4.1,6.4.2,6.4.3,6.5.1,6.5.2,6.6
|
Advantages
-
Robust & Lightweight: Industrial aluminum frame for stability.
-
Precision Control: Real-time force feedback via SMC valves.
-
Flexible Testing: Adjustable cylinders and modular pads.
-
User-Friendly: Intuitive PLC interface and automated data logging.
-
Multifunctional: Supports joint/independent operations for complex simulations.
-
Compact yet powerful, it streamlines QA for furniture manufacturers.
Furniture Universal Testing Machine Key Specifications
|
Control mode
|
PLC control
|
|
The Max. length of specimen
|
3m
|
|
Force sensor
|
2.5KN
|
|
Control mode
|
PLC+ Touch screen +GESTER system
|
|
Driving method
|
AIRTAC cylinder: 8 pcs
SMC electrical proportional valve 7pcs
|
|
Air supply
|
≥0.6Mpa
|
|
Power supply
|
AC 220V 50HZ/60HZ
|
|
Machine dimensions
|
5980 × 5680 x 3940mm (L×W×H)
|
|
Machine weights
|
3000KG
|
|
Standard Accessories
|
5 sets
|
Horizontal loading device
|
|
2 sets
|
Vertical loading device
|
|
1 set
|
Impactor Device
|
|
2 pcs
|
GT-LB01-2 Seat loading pad
|
|
2 pcs
|
GT-LB01-3 Smaller seat loading pad
|
|
2 pcs
|
GT-LB01-4 Back loading pad
|
|
7 pcs
|
GT-LB01-5 Local loading pad
|
|
1 set
|
GT-LB01-6 Seat Impactor Device
|
|
1 set(350Lbs)
|
GT-LB01-11 BIFMA Bag Type Impactor device
|
|
7pcs
|
Force sensor
|
|
7pcs
|
Electric proportional valve
|
|
1 set
|
Motor
|
|
8pcs
|
Stoppers
|
|
Optional Accessories
|
1 set
|
GT-LB01-1A Loading point template
|
|
1 set
|
GT-LB01-7 Impact hammer
|
|
2 sets
|
GT-LA25 Bunk Bed Test Mass
|
|
4 pcs
|
75mm*75mm Loading pad
|
|
1set
|
100kg Disc superimposed weight
|
|
1pc
|
Φ300MM Loading pad
|
|
1pc
|
Φ400MM Loading pad
|
|
1set
|
GT-MA12B Air Compressor
|

|
