Vertical Loading Testing Machine GT-LA09D

(Furniture Testing)

Item NO.:
GT-LA09D
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE

Contact Now

Description

Applications:

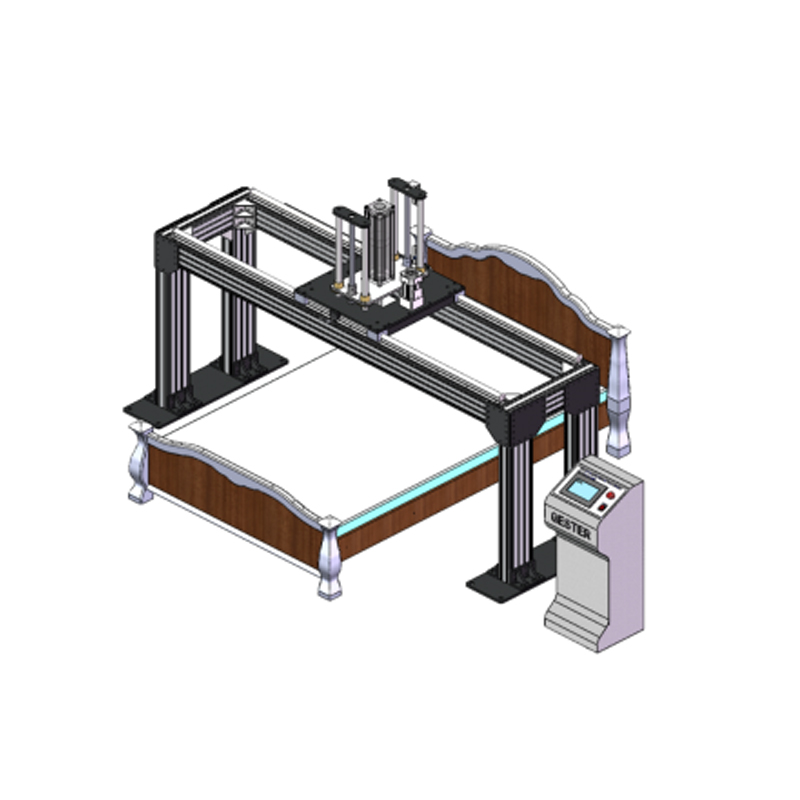

This machine can apply a vertical load force to the surface of the bed or table, and can achieve the functions of static load and repeated durability tests. The entire frame is made of high-quality aluminum profiles, which is elegant and stylish. The loading cylinder adopts servo motor combined with cylinder to precisely control the application of force.

Key Specification

Model	GT-LA09D
Control method	PLC Touch screen control
Force Sensor	Celtron 2500N
Drive mode	Servo motor+Cylinder
Loading Cylinder	Horizontal movement approx. 2200mm, vertical movement approx. 500mm
Testing time	0~9999min, settable
Power supply	1∮ AC 220V 50/60Hz
Dimension	Approx. 26009001800mm
