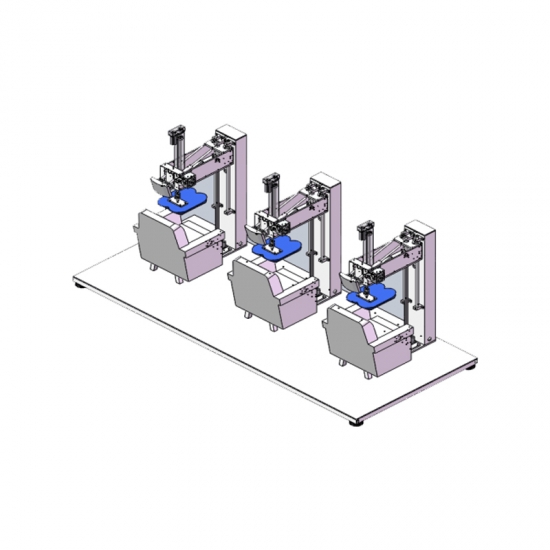

3 Stations Chair Seating and Back Testing Machine GT-LB04CA

Applications:

The Chair Testing Equipment tests the strength and durability of the seats and backrests by simulating the routine use loading of the seat.

The machine is equipped with 3 same working positions which can make 3 tests at the same time. Each working postion has two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:

1. Seat and back static load test.

2. Seat and back durability test.

3. Seat front edge static load and durability tests;

4. Horizontal forward static loading test for backrest.

5. Headrest static load test,

6. Legs forward static load test,

7. Leg lateral direction static load test.

Feature:

1. The main structure of the machine use anti-rust paint handling, beautiful and easy to maintain.
2. Servo motor drive, test loading control is more accurate, and the noise is even smaller.
3. PLC touch screen control makes the operation more convenient.
4. The height of the whole driver module is adjustable.
5. The angel of the backrest loading device is adjustable.

Standards:

EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 7.3, 7.4,7.9, 8.2, 8.4.1,8.5

EN581-2-2015 (corresponding with EN1728-2012),

EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1

EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6,

ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8,

GB/T 10357.3 -2013 Section 4.3, 4.4,4.7,4.8,4.10,4.11,

EN 16139-2013 (corresponding with EN1728-2012)

BS5459-2-2000 Section A5.1

QB/T 2280-2007 Section 6.6.4, 6.6.9

Key Specifications:

Accessories:
