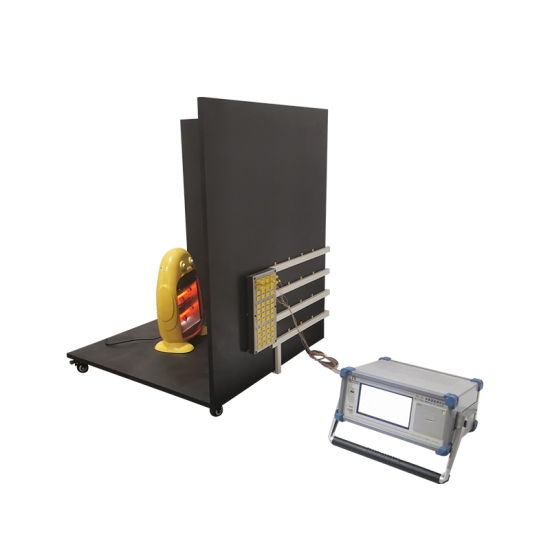

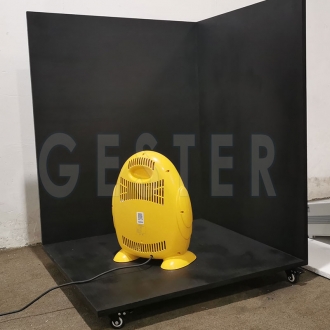

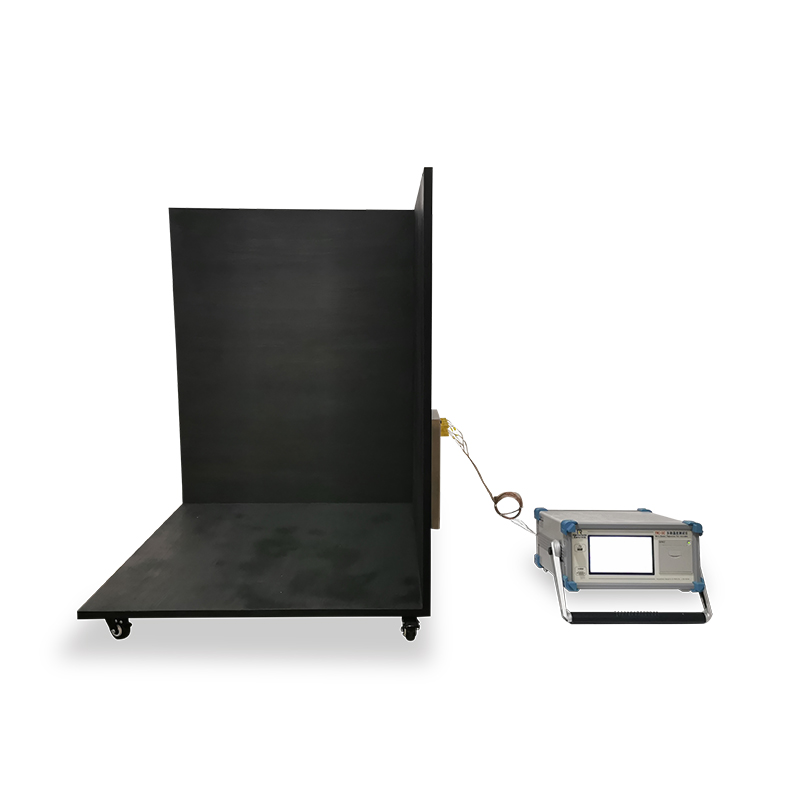

Black Test Corner GT-MC10

Dimension

600X600X1000mm, 800X800X1000mm (or customize)

Thermocouple

Original US OMEGA thermocouple type K (diameter less than 0.3mm )

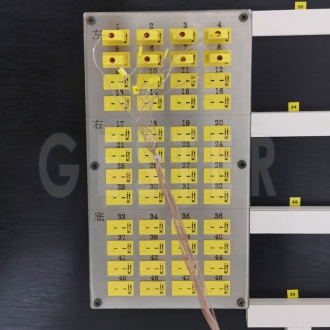

Thermalcouple arrangement

All lead on one or three wiring panel (with thermocouple connector plugs and sockets)

Temperature copper

Diameter 15mm, thickness 1mm brass sheet. The front surface of the round copper flush with the plywood surface.

Temperature measuring points

32 points and 48 points for each side, (or customize)

Temperature measuring points arrangement

100×100mm or76×76mm or 50×50mm, a square distribution.

Plywood

The thickness of plywood is about 20 mm , the front painted with matte black paint, the back stick a gray film plate.

Active roof part

Install a hook，load-bearing is 15kg

Construction

1 piece of floor, 2 pieces of side panel, 1 piece of roof, the bottom is wooden feet, the roof can be taken down.

Optional accessory

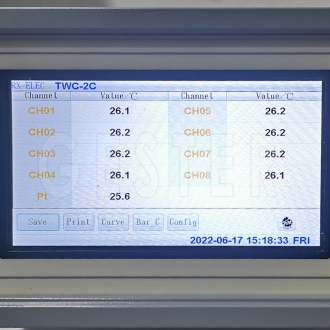

GT-MC10-1 Multiplex Temperature Tester
