Applications:

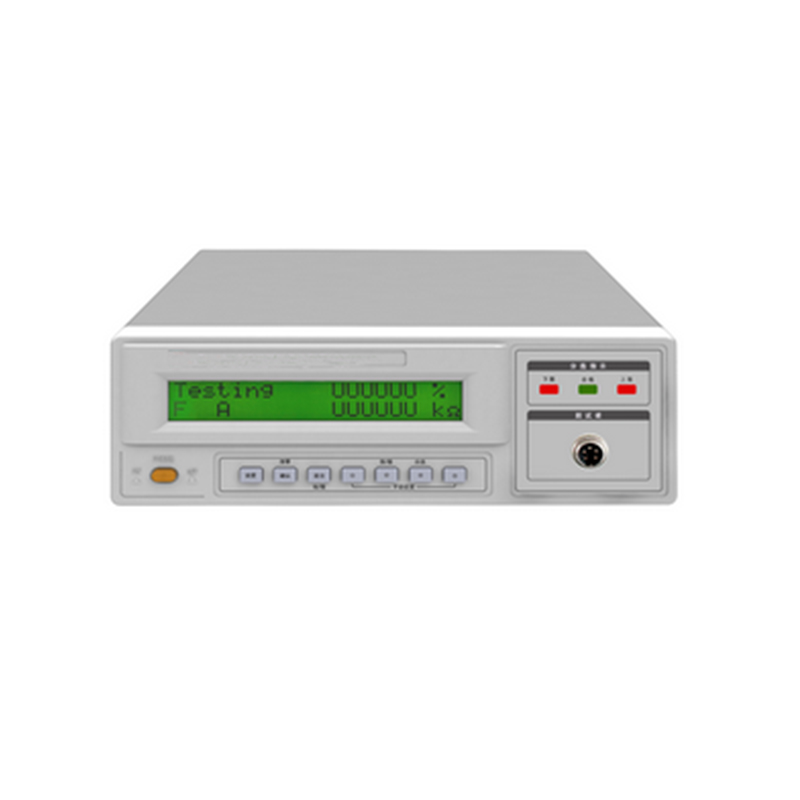

DC low-resistance Tester, can be described as intelligentialized dc resistance test instrument with wide range and high precision. It can be applied to test inductance coil copper resistance, relay contact resistance, switch, connector contact resistance, conductor resistance, component solder contact resistance, PCB line and welding hole resistance, metal defect detection and etc in production line. To improve Automated testing capability of production line, it can output Accepted product/Defective product with HANDLER or GRIP connector(Optional Accessories).
|
Features
-
Wide resistance measurement range: 1μΩ ~ 2MΩ.
-
Adjustable measurement speed: Slow speed 2.5 readings/s, Fast speed 10 readings/s.
-
High accuracy: Basic accuracy ±(0.05% + 2 digits).
-
Sorting function: LOW, PASS, HIGH; supported with Handler interface and buzzer alarm.
-
Offset zeroing function.
-
Optional temperature compensation module, for measuring component parameters under various temperature environments.
-
Multiple interface configurations: equipped with RS232 and Handler; RS485 and USB are optional.
Key Specification
|
Model
|
GT-MC06/CS2512
|
GT-MC06/CS2512A
|
GT-MC06/CS2512B
|
|
Resistance
|
1μΩ～2MΩ
|
10μΩ～200kΩ
|
1μΩ～20kΩ
|
|
Accuracy
|
±(0.05%+2count)
|
±（0.1%+2count）
|
±（0.1%+2count）
|
|
Electric current
|
1A,100mA,10mA,1mA, 100μA,10μA,1μA
|
100mA,10mA,1mA, 100μA,10μA
|
1A,100mA,10mA, 1mA,100μA
|
|
Measurement range
|
20mΩ,200mΩ,2Ω, 20Ω,200Ω,2kΩ, 20kΩ,200kΩ,2MΩ
|
200mΩ,2Ω,20Ω,200Ω,
2kΩ,20kΩ,200kΩ
|
20mΩ,200mΩ,2Ω,20Ω,
200Ω,2kΩ,20kΩ
|
|
Range resolution
|
1μΩ,10μΩ,100μΩ, 1mΩ,10mΩ,100mΩ, 1Ω,10Ω,100Ω,
|
10μΩ,100μΩ,1mΩ,
10mΩ,100mΩ,1Ω,10Ω
|
1μΩ,10μΩ,100μΩ,
1mΩ,10mΩ,100mΩ,1Ω
|
|
Test speed
|
Fast: 10 readings/s; Slow: 2.5 readings/s
|
|
Range mode
|
Auto Hold
|
|
Trigger mode
|
Internal Manual External
|
|
Interface
|
Handler RS232 RS485 USB
|
|
Test mode
|
Single trigger (Handler Test), continuous
|
|
Test method
|
4-terminal test method (2 voltage sensing terminals, 2 current drive terminals)
|
|
Range selection
|
Auto Manual
|
|
Operating temperature
|
0 ~ 40℃
|
|
Operating humidity
|
0 ~ 85% R.H.
|
|
Power supply
|
AC 220V 50Hz
|
|
Dimension
|
285mm×95mm×375mm
|

|
