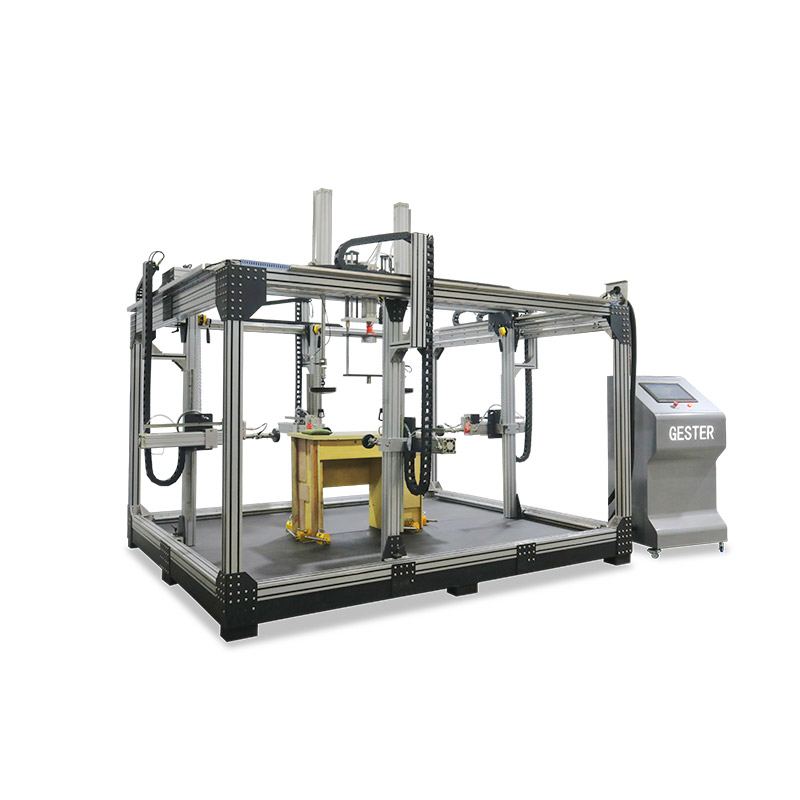

Bunk Beds Universal Testing Machine GT-LA22

Applications:

This tester is used for testing the mechanical properties of beds. Can perform the horizontal static load, vertical static load and durability test

Standards:

ASTM F1427-2021 Section5.2, 5.4, 5.5, 5.6,5.7,5.8;

EN 747-2 Section 6.3,6.4,6.5,6.6

1. The Bunk Beds Universal Testing Machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.

2. Up to 5 sets of cylinders installed, one set on each side, one set on top frame. All cylinders can be adjusted up and down, frontward and backward to cover all mounting surfaces. The 5 sets of cylinders can execute joint or independent operation.

3. The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.

4. PLC + 15inch touch screen controller to control the actions of the instrument; the operation is intuitive and simple.

5. Bunk Bed Durability Testing Machine use the latest self-developed servo motor + cylinder combined drive structure to meet the dual requirements of international standards for force accuracy and test speed; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
