Carrying Capacity Tester GT-LC41

(Furniture Testing)

Item NO.:
GT-LC41
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
EN 13590:2003

Contact Now

Description

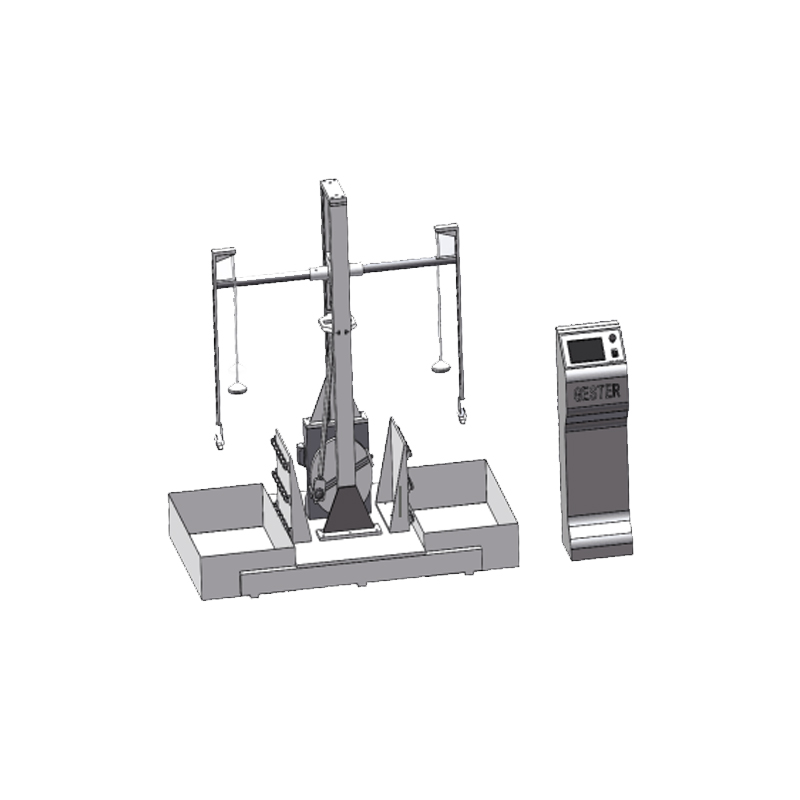

Carrying Capacity Tester

Applications:

This machine is designed to test the carrying capacity of bags, through the test, the analysis will give you information about the weak points of the bag construction.

The carrier bag is filled with plastic cylinders and then hung in its handles on the grip of the tester.
The tester lifts and lowers the carrier bag 20 times, or until the bag breaks.
For a carrier bag to pass the test 19 out of 20 bags must stand 20 lifts for a certain weight.

Standards

EN 13590:2003

Key Specification

Model	GT-LC41
Working position	2
Motor	3P variable frequency motor + frequency changer
Moving Distance(up and down)	325±1(mm)
Testing Speed	0.65±0.05m/s
The distance of handle	200 ~ 800(mm) adjustable
Loading	0 ~ 60 kgs
Net weight (kg)	About 300 kgs
Dimension (W×L×H)	About 2200×1200×1800mm
Power supply	AC 380V
