(Furniture Testing)
Item NO.:
GT-LC22Lead Time:
20-30 daysBrand:
GESTERcertificate:
ISO 9001, UKAS, CEstandard:
QB/T 5084|

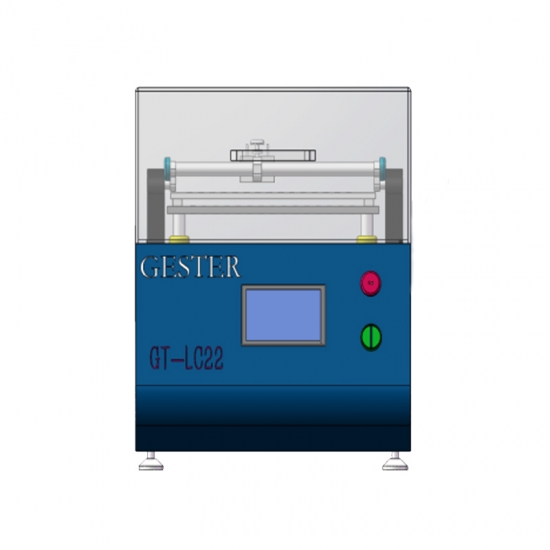

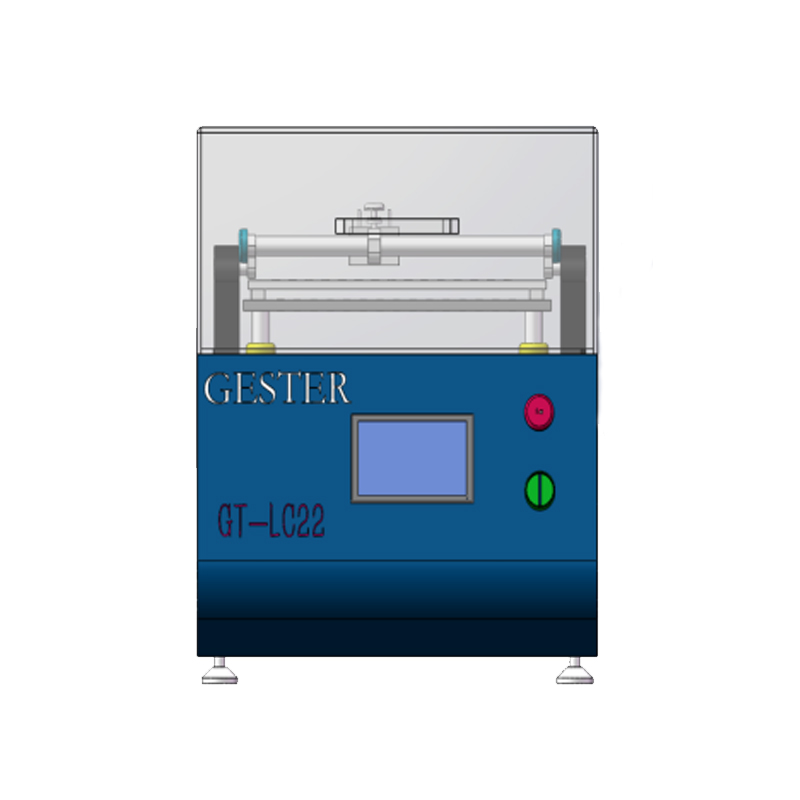

GESTER company develops our own control system with times setting and counting functions. There’s start, stop, pause, count and clear functions on the test control panel. The machine can count from 0 to 999,999 times and it will stop automatically when reach the set testing times. The control system controls the motor to open and close at a certain angle (90°). The lower sample holder is divided into two part, A and B. And different test samples are tested with different clamping fixtures. The seat can be adjusted up and down, so the test equipment works with two motors. The upper clamp adopts mechanical up and down movement to hold the sample. The upper clamp is made of high-strength steel, and the thickness is thin, which can simulate the actual situation and avoid the phenomenon that the sample connection is not in place due to the thickness of the clamp. The upper clamp can be moved on the x &y axis to facilitate sample clamping.
|
Key Specification
Model
GT-LC22
Control System
PLC+ Touch Screen( Man-machine interface control system with easy operation and power-off saving function)
Counting
0—999 999 times, automatic stop function when reaches set amount and setting requirement times functions in the Man- machine interface,. The movement angle: 90°
Drive motor A
High-precision variable frequency motor control, stable speed, lower noise and long life span.
Drive motor B
Adjust the test platform to up and down movement to adapt to test samples with different heights , which is easy to adjust.
Sample Clip
Made of high strength steel with thin thickness, which is closer to reality in the test process.
Platform Size
It conforms to different test samples and is divided into upper and lower test platforms, and different tests are performed with different clamps.
Opening and Closing Speed
Angular speed 600 ±10 times/min.
Platform adjustment height
0-150mm
Size
600×450×580mm
Power supply
Single phase, AC220v, 50/60HZ
Weight
80kg
