Chair Armrest and Seat Tester GT-LB03S: A Comprehensive Breakdown
What Exactly is Chair Armrest and Seat Tester?

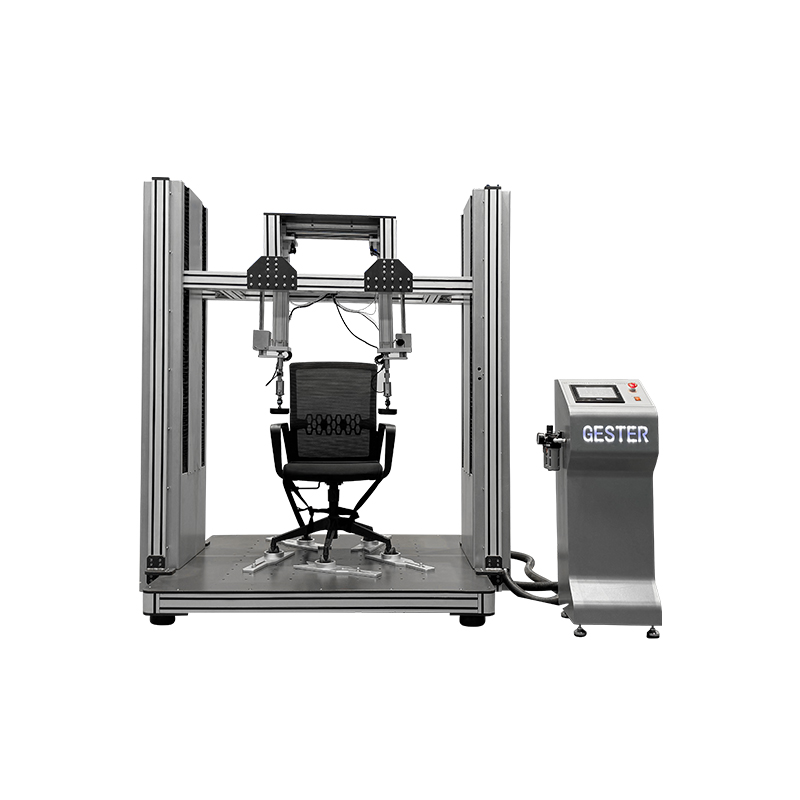

Chair Armrest Testing Machine tests the strength and durability of the handrails, seats,or other parts by simulating the loading of the seats during routine use.
Chair Armrest and Seat Tester Standards:
EN 1728-2012 Section 6.6,6.8, 6.9, 6.11, 6.12, 6.13,6.14, 6.18,6.20, 6.21 ,6.22, 7.4, 7.5, 7.6, 7.8, 7.10 , 7.12
EN1335-3 -2009 Section 7.2.1, 7.2.3, 7.2.4, 7.2.6, 7.3.2,7.3.4,
EN 1729-2-2012 Section 5.3.4, 5.3.9,5.3.11, 5.3.12
EN581-2-2015 (corresponding with EN1728-2012),
ISO 7173-1989 Section 7.1, 7.4
GB/T 10357.3 Section 4.3.3, 4.4, 4.6, 4.9,
QB/T 2280-2007 Section 6.6.5, (6.6.13.2 Load pad(optional accessory) is required)
BIFMA X5.1 - 2011 Section 21,(11.4,19, 20, 23,24 Load pad(optional accessory) is required(
EN 16139-2013 (corresponding with EN1728-2012)
BS5459-2-2000 Section A5.5, A7.3
Some Examples On Where or How Could Chair Armrest and Seat Tester Be Used?
The Chair Armrest Testing Machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:
1.Armrests vertical static load test;
2.10°angle armrests durability test;
3.Seats front edge static load and durability test;
4.Vertical static load test on backrests;
5.Footrest static load and durability test;
6.Leg rest static load test;
7. Armrest upward static load test (need to be equipped with the weights);
8. Writing board vertical static load and durability test.
How to Conduct Chair Armrest and Seat Tester?
Acceptance
-
Connect the power supply.
-
Connect the air hose and adjust the pressure about 0.6Mpa.
-
Turn on the power switch and emergency stop switch.
-
Trial run: Check whether the screen works normally.
-
Check whether the beam works normally.
Operation
-
Click "RST" to reset.
-
Install the chair and place the center of the chair corresponding to the center of the baseboard.
-
Adjust the height of the beam so that the loading pad is about 100mm from the armrest.
-
Move the loading pad to the top of the armrest and fix it.
-
(The loading pad can be adjusted to a 0-10° inclination angle according to standard requirements),
-
Set "Force Setting", "Setting Cycles"and"Hold Time".
-
Click“ZERO" to clear the data, click“START" to start the test.
-
When the number of tests reaches the set value, the test is completed.
The Features Of Chair Armrest and Seat Tester

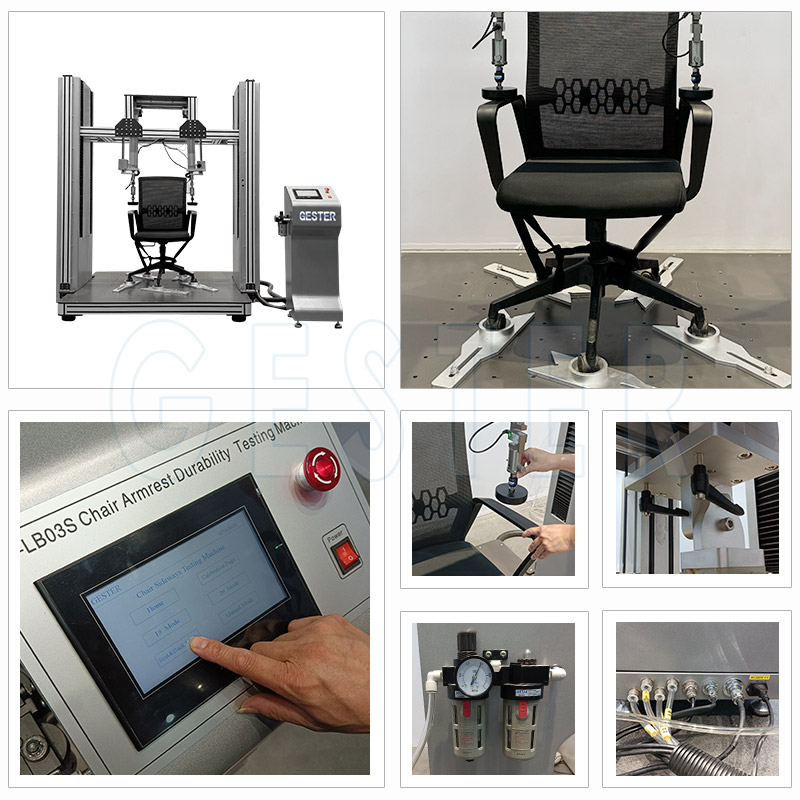

1. The main structure of the Chair Armrest and Seat Testing Machine is made of aluminum, beautiful and easy to maintain.
2. Servo motor and air cylinder drive, the test loading control is more accurate, and the noise is even smaller.
3. PLC touch screen control, operation more convenient.
4. In addition, the Chair Armrest and Seat Testing Machine loading device using electric control movements, more extensive test space.
