Chair Assembly Testing Machine GT-LB08-1

(Furniture Testing)

Item NO.:
GT-LB08-1
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN 1728-2012, ISO 7173-1989, GB/T 10357.3 -2013, BS5459-2-2000

Download Contact Now

Description

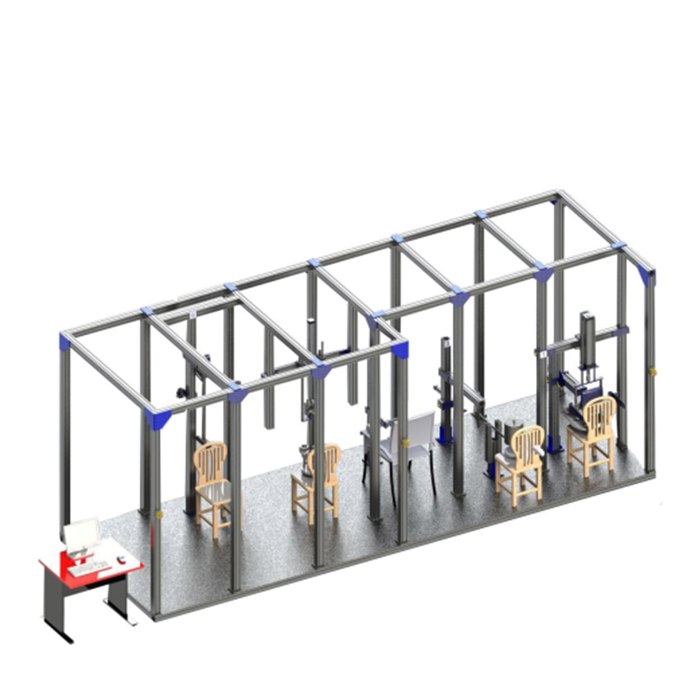

Chair Assembly Testing Machine

Applications:

This tester is according for the standard EN 1728 and combination with different methods:

Seat static load and back static load test

Seat and back durability test

Seat front edge static load test
Seat front edge durability test
Seat impact test

Back rests vertical load test
Back rests horizontal forward static load test
Back impact test

Leg rest static load test
Leg forward or sideways static load test

Arm rest sideways static load test
Arm rest downwards static load test
Arm rest durability test
Arm rest impact test
Arm rests vertical upwards static load test

Headrest static load test
Foot rest static load test or durability test
Auxiliary writing surfaces static load test and durability test

Standards:

EN 1728-2012 Section 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6.11, 6.12, 6.13, 6.14, 6.15, 6.16, 6.17, 6.18, 6.20, 6.21, 6.22, 6.24, 6.25, 6.26, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.12, 8.2, 8.3, 8.4, 8.5 , 8.6, 8.7, 8.8, 8.9
EN581-2-2015 (correspond EN1728-2012),
EN 16139-2013 (correspond EN1728-2012)
EN1335-3 -2009 Section 7.2, 7.3.1, 7.3.2, 7.3.4,
EN 1729-2-2012 Section 5.3
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.11, 7.12
GB/T 10357.3 -2013 Section 4.3, 4.4, 4.5,4.6, 4.7, 4.8,4.9, 4.10,4.11, 4.12, 4.13 , 4.14
BS5459-2-2000 Section A5.1, A5.2, A5.3, A5.5, A7.2, 7.3, A7.4, A7.7, A7.9

Feature

1.The main structure is made of aluminum, which is beautiful and easy to maintain
2.Imported cylinder together with servo valve, make test load control more accurate, and noise small.
3.The use of computer software control, more than one chair at the same time test different functions, the operation more convenient.

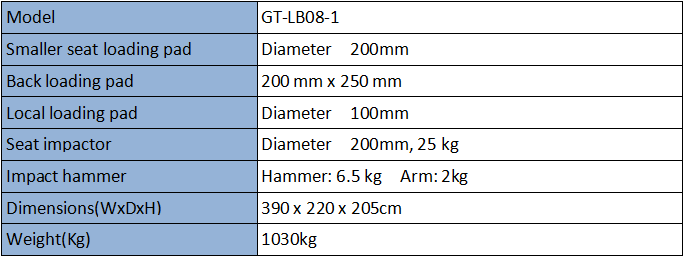

Key Specifications

Applications Industry

All kinds of chair products can be tested on the Chair Assembly Testing Machine
