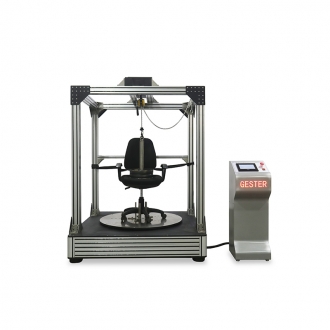

Swivel Chair Caster Durability Testing Machine GT-LB07

(Furniture Testing)

Item NO.:
GT-LB07
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN 1728-2012, ANSI/BIFMA X5.1 - 2011, EN1335-3 -2009, QB/T 2280-2007, BS5459-2-2000

Download Contact Now

Description

Chair Caster Testing Machine

Applications:

The Swivel Chair Caster Durability Tester applies to test all chair types with a swivel seat or with castors.

And the testing machine equip with 2 functions:
1.Chair swivel durability test:The base of the chair shall be secured on a rotating table so that the rotating axis of the chair coincides with the rotating axis of the table. The upper part of the chair shall be loosely fixed in such a way as not to hinder the rotation of the base. Load the seat in loading point with the specified additional load. Then rotate the chair at the specified rate and angle. Change direction after each rotation. Thus,to test the chair swivel structure durability.

2.Castors durability test:Load the seat with the specified load,the base and whose upper parts shall be loosely fixed in such a way that there is no rotation of the base but that the natural swivel of the castors during testing are not prevented, thus,to test the castors durability.

The purpose of this test is to evaluate the ability of the chair to withstand stresses and wear of repeated swiveling.

Standards:

EN 1728-2012 Section 6.29 method 1, 7.11 ,7.13 method 1
ANSI/BIFMA X5.1 - 2011 Section 9 ,
EN1335-3 -2009 Section 7.3.3, 7.3.5 method 1
QB/T 2280-2007 Section 6.6.12,

Swivel Chair Caster Durability Testing Machine Key Specifications

Swivel Chair Caster Durability Testing Machine GT-LB07

Applications Industry

All kinds of chair products can be tested on the Chair Swivel and Castors Durability Testing Machine

Swivel Chair Caster Durability Testing Machine
