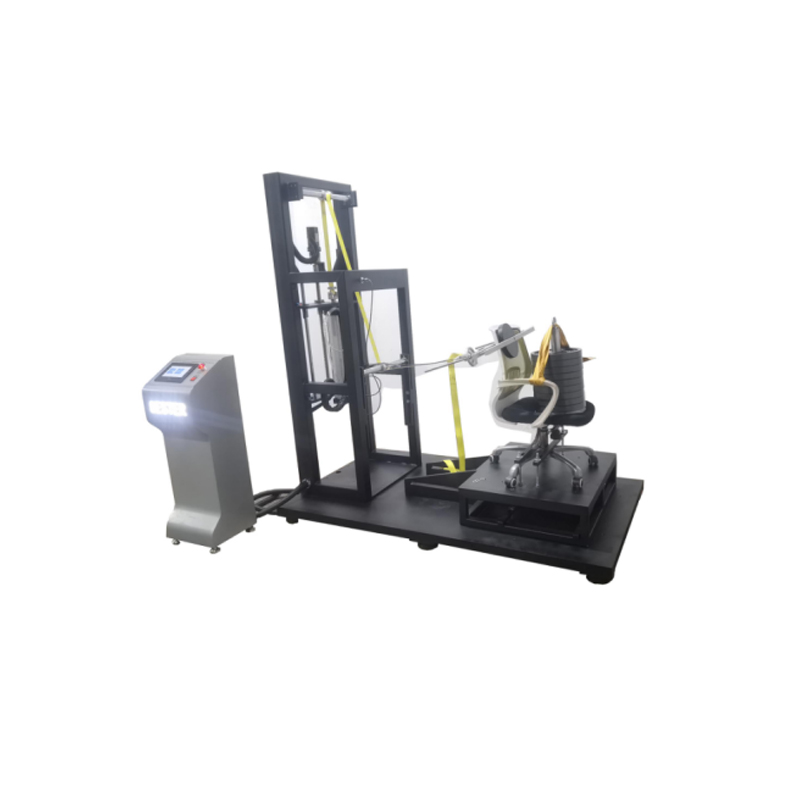

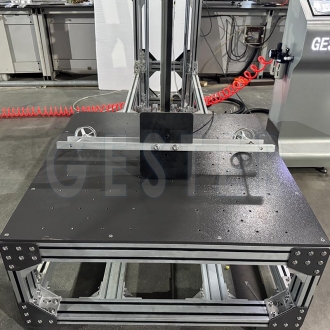

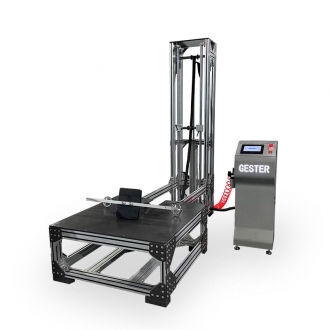

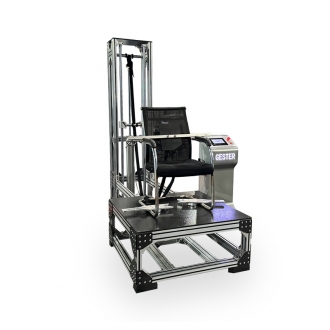

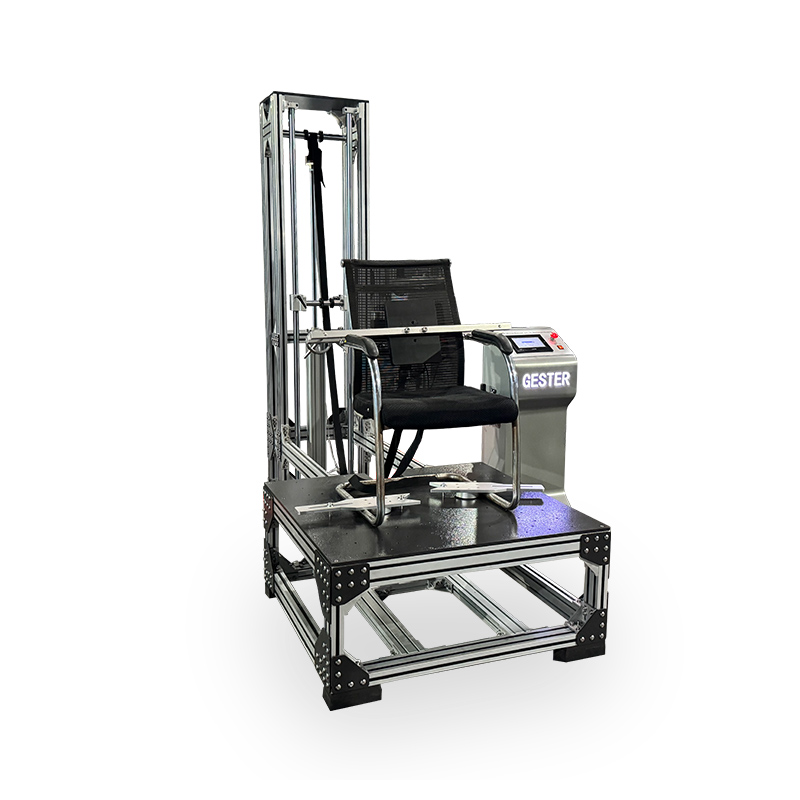

Chair Backrest and Tilt Mechanism Durability Test Machine GT-LB13B

Model

GT-LB13B

Loading method

Pull

Load cell capacity

2000N

Seat load weights

109kg(240Lb) or 122kg(270Lb)（weights Accumulation）

Back loading force value

334N(75Lb)/445N(100Lb)/ 667N(150Lb)/1001N(225Lb)/Can be set

Back loading position

Backrest height>452mm

406mm

Backrest height<452mm

Load on the top of backrest

Back loading force direction

Angle

90°±10° ( Adjustable)

Test speed

10~30 times/min

Test Times

0~999 999 times, settable

Force adjustment method

Servo valve + Force sensor

Control

PLC touch screen control

Dimensions(W*D*H)

150*100*170 cm

Gas source

Stable gas supply(> 6kgf/cm^2)

Power

1∮,AC220V, 50/60 HZ 3A
