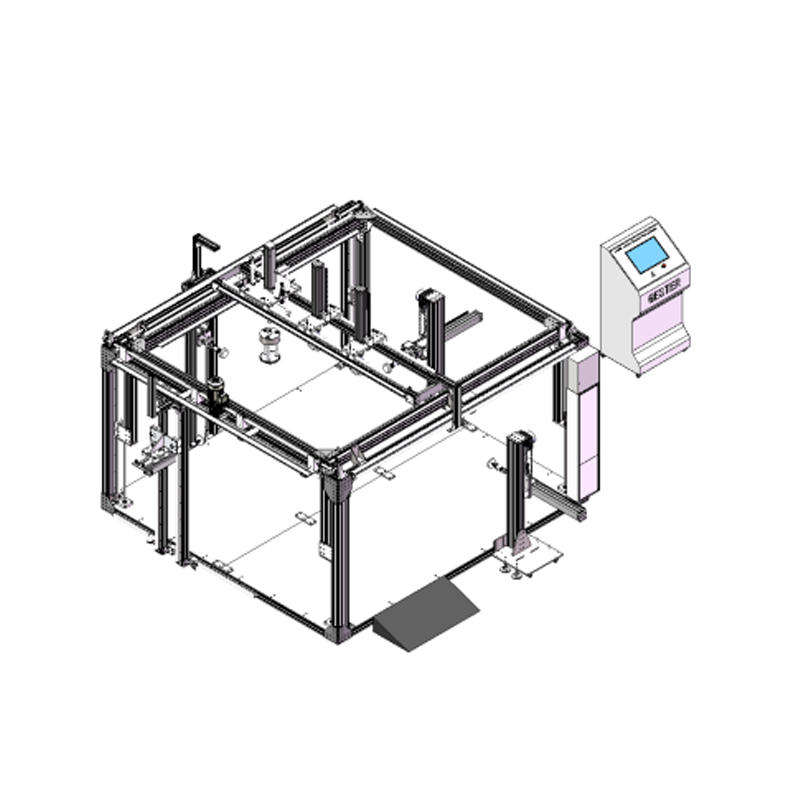

Desk Universal Testing Machine GT-LD09

(Furniture Testing)

Item NO.:
GT-LD09
Lead Time:
7-30 days
Brand:
GESTER
Payment:
100% T/T in advance
Shipping Port:
Xiamen Port
certificate:
ISO 9001, UKAS, CE
standard:
EN 1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 6.7,6.9. EN 1725 Section 7.2, 7.3, 7.4, 7.5, 7.6, 7.7

Contact Now

Description

EN1730 Desk Universal Testing Machine

Applications:

This tester is used for testing the mechanical properties of tables and desks. Can perform the horizontal static load and durability test, vertical static load and impact test.

Principle:

Desk Universal Testing Machine applies the four horizontal air cylinder (with the specified force value) on the four sides of the sample. After a certain number of times of repeating loop, we check if there is any damage on the specimen structure, function and other aspects. So as to understand the product performance and defects and provide reference for improved products.

Feature:

1.Desk Universal Testing Machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2.The frame adjustment part of the tester adopts pulley structure design. Can easily adjust the loading position to adapt to different specifications of the sample. Positioning handle makes the positioning easier and improve the efficiency.
3.The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4.PLC controller to control the actions of the instrument; the operation is intuitive and simple.
5.Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6.Removable loading pad, can easily change the different loading pad to meet the different test requirements.

Key Specifications for Desk Universal Testing Machine

Control mode	PLC control
The Max. length of specimen	3m
Load cell	2.5KN
Machine Dimensions	320cm×250cm×200cm(L×W×H)
Test Standards	Desk: EN 1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 6.7,6.9, 7.2, 7.3 , BS EN 15372-2016 Test1, Test2,Test3,Test5, Test6,Test8,Test10, AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R AS NZS 4442-1997 Annex A,B,H,J
Testing Methods --- Desk Standard EN 1730	1. 6.2 Horizontal static load test 2. 6.3 Vertical static load tests 3. 6.4 Horizontal durability and stiffness test 4. 6.5 Vertical durability test . 5. 6.6 Vertical impact test 6. 6.7 Deflection of table tops 7. 6.9 Drop test
Standard Accessories	- Horizontal loading device 4 sets - Vertical loading device 2 sets - Impact device 1 set - Local loading pad 6 pcs - GT-LB01-6 Seat Impactor Device 1Set - Force sensor 6 pcs - Electric Proportional Valve 6 pcs - Motor 1 set - Stoppers 4 pcs
