Chair Front Stability Testing Machine GT-LB06A

(Furniture Testing)

Item NO.:
GT-LB06A
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE
standard:
ANSI/BIFMA X5.1 - 2011 Section 12.4 , EN 1335-3 Section 7.12

Contact Now

Description

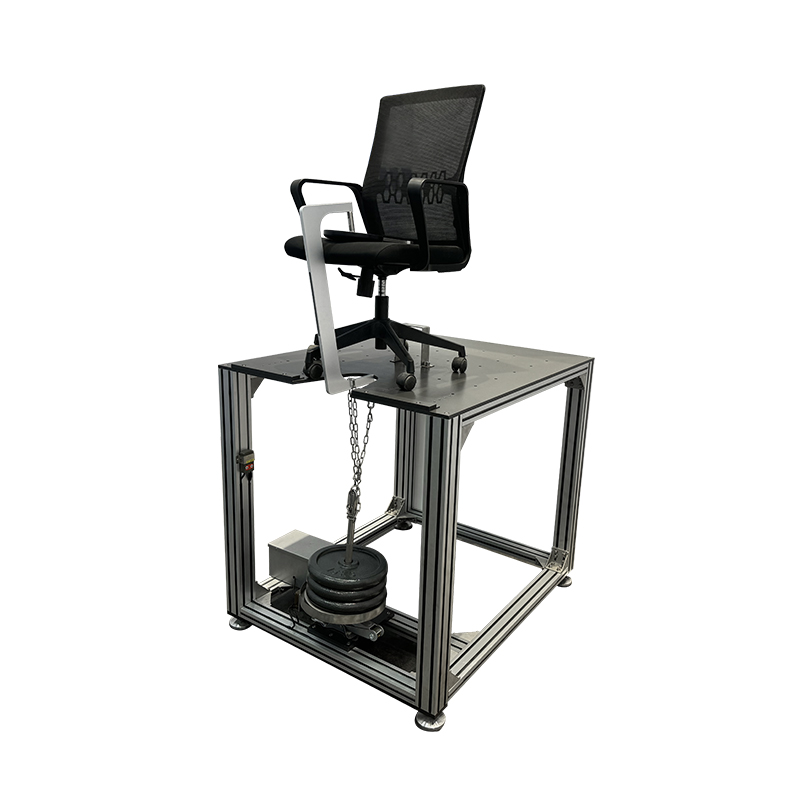

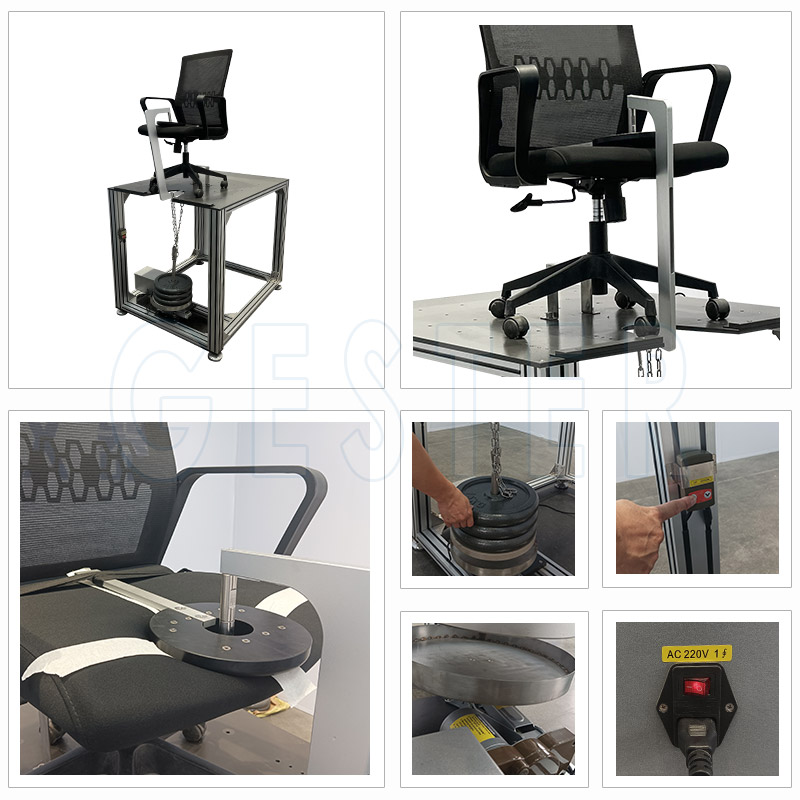

Chair Front Stability Testing Machine

Applications:

Chair Front Stability Testing Machine is used to test the forward stability of chairs.

Principle: the sample is placed on the test table, the front foot is blocked with the block. Apply a certain load on the seat surface, apply 20 N of force to the loading point. Check whether the specimen is tilted forward to assess the forward stability of the specimen.

Standards:

ANSI/BIFMA X5.1 - 2017 Section 11.4 , EN 1335-3-2009 Section 7.1.2, 7.1.3,

EN1022-17 Section6.3.1,6.3.3, 6.3.4, 6.3.5, 6.3.6, EN 16139 Section 4.3.2

Chair Front Stability Testing Machine Key Specifications

Model	GT-LB06A
Test load	600N (135 lbf.) (Accumulated weight)
Loading point number	1 ponit
Loading point	Seat surface center, 60mm from front edge
Weights basket	Manual controlled lifting
Seat surface load pad	Diameter: 200mm, camber surface: R300mm
Loading rod	Diameter	19mm
	End	A type: Spherical SR19mm
		B type: 45°Taper
Dimensions	120×100×90cm
Weights	≈300Kg
Standard Accessories	Weights basket 1 pc Seat surface load pad 1 pc 600N Load weights 1 Set Weights holding device 1 pc
Option Accessories	FB-200N IMADA push pull scale 500N Load weights for EN 1335-3-2009 Section 7.1.3

Applications Industry

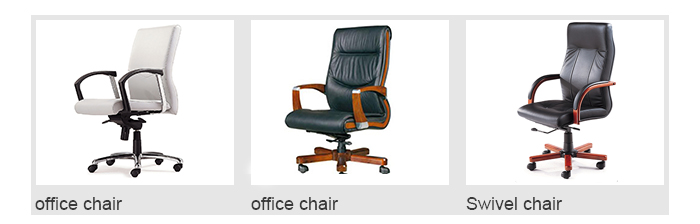

All kinds of chair products can be tested on the Chair Front Stability Testing Machine
