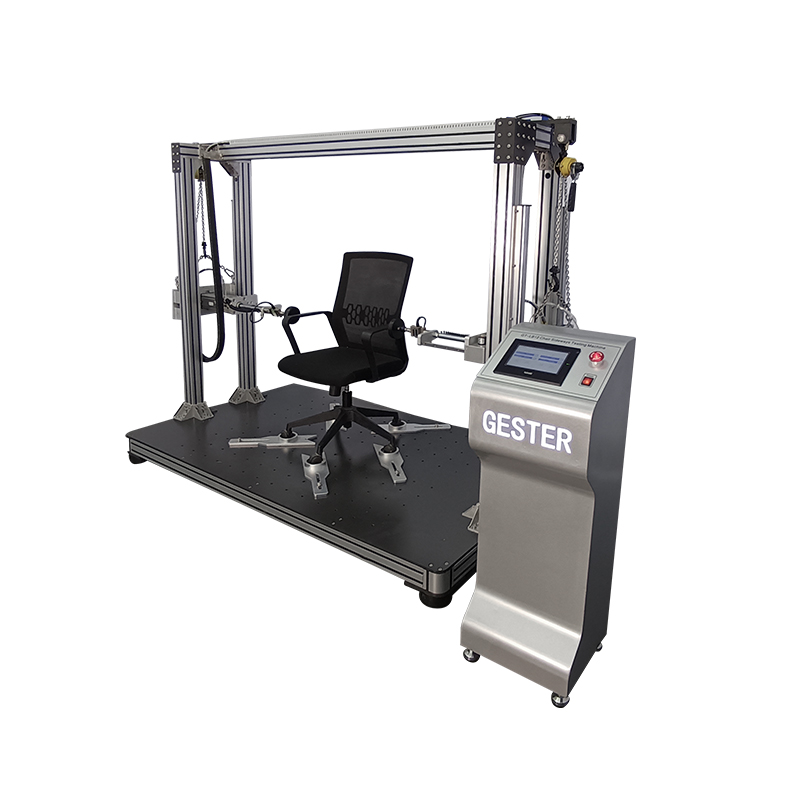

Chair Sideways Testing Machine GT-LB12

(Furniture Testing)

Item NO.:
GT-LB12
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN 1728-2012, EN581-2-2015, EN1335-3 -2009, EN 1729-2-2012, ISO 7173-1989 , GB/T 10357.3 -2013, BIFMA X5.1 - 2011, EN 16139-2013, BS5459-2-2000, QB/T 2280-2007

Contact Now

Description

Applications:

This Chair Sideways Testing Machine is used to simulate the loading condition of the chair in daily use, and test the lateral static load strength of the handrail.

The Chair Tester is equipped with two drive devices, and can be individually controlled separately to repeated load for the test point of the seat . Through different parameter settings, can do the test for different seats.

Standards:

EN 1728-2012 Section 6.10, 7.7

EN581-2-2015 （EN1728-2012),

EN1335-3 -2009 Section 7.2.5

EN 1729-2-2012 Section 5.3.5

ISO 7173-1989 Section 7.3,

GB/T 10357.3 -2013 Section 4.5

BIFMA X5.1 - 2011 Section 14

EN 16139-2013 （EN1728-2012)

BS5459-2-2000 Section A7.2

QB/T 2280-2007 Section 6.6.6

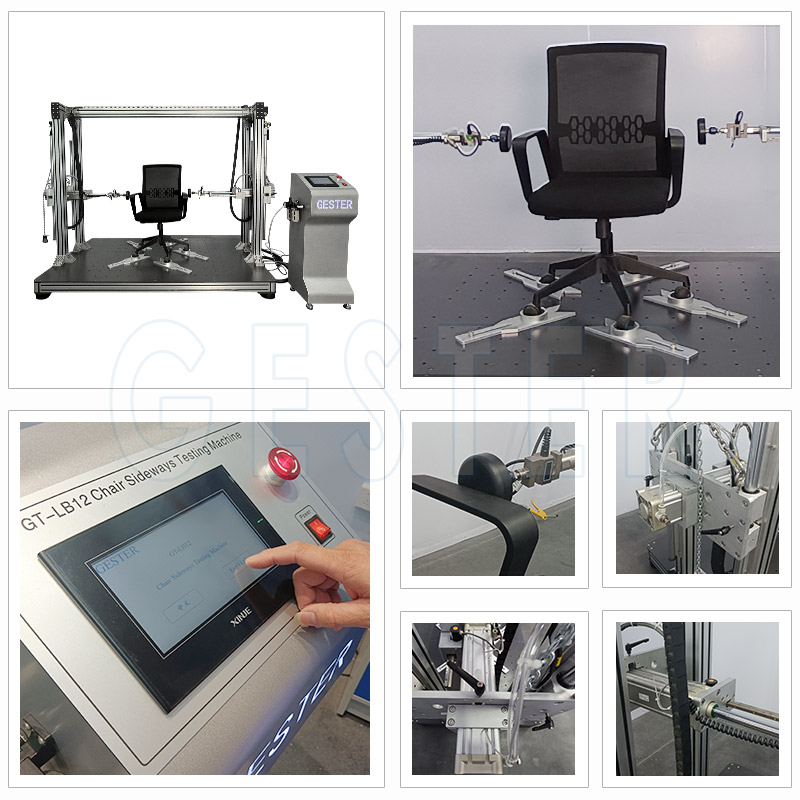

Principle

The main structure is made of aluminum, which is beautiful and easy to maintain.
Servo proportional valve and air cylinder drive, the test loading control is more accurate, and the noise is even smaller.
Chair Sideways Testing Machine equipped with two driving devices, it can be individually controlled to test the seat repeatedly.

Chair Sideways Testing Machine Key Specifications

Model	GT-LB12
Load cell capacity	2000N
Testing time	0-99999 ( can be adjusted)
Control method	PLC touch screen
Power supply	1 phase AC 220V 50/60Hz 150x150x150cm
Dimensions(W x D x H)	150x150x150cm
Weight	300kg

Accessories

Standards accessories	2pc	GT-LB01-5 Local loading pad
	1pc	Stationary fixture

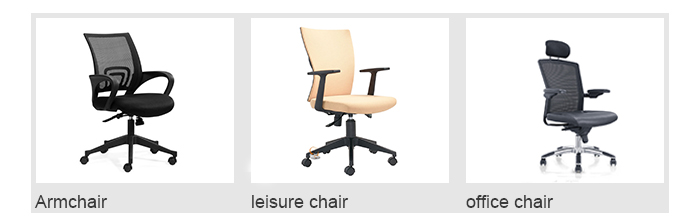

Applications Industry

All kinds of chair products can be tested on the Chair Sideways Testing Machine
