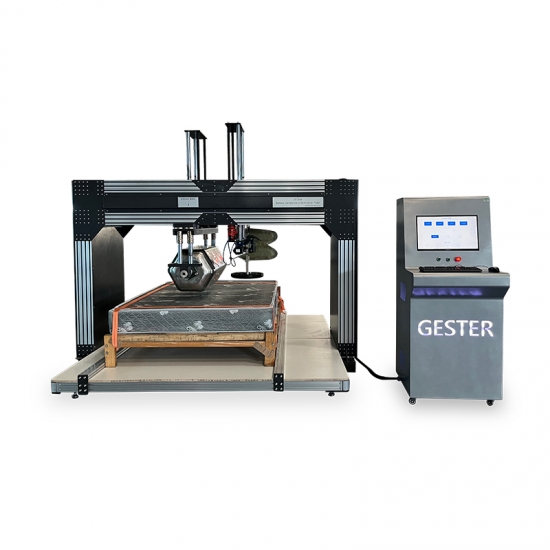

Mattress Comprehensive Performance Tester GT-LA08

(Furniture Testing)

Item NO.:
GT-LA08
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE
standard:
BS EN 1957, EN 1725, QB/T 1952.2

Contact Now

Description

Mattress Comprehensive Performance Tester

Applications:

Mattress Comprehensive Performance Tester is the newest design mattress comprehensive performance tester according to EN 1957 and EN 1725 standard.

In general, the machine is configured with the following four test functions:

Height loss test: the height loss expresses the change in the height of a test unit caused by the durability test.

Durability test : test simulating the repeated application of loads and/or movement of components occurring during long-term use and assessing the strength of the article under such conditions. The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.

Hardness Value & Firmness rating test : the hardness value is determined from load/deflection measurement which be obtained by pressing a load pad into the test unit and measuring the associated value of indentation and force simultaneously. And the firmness rating is used to express the subjective assessment by persons, it is determined form the hardness value upon results from empirical studies.

Bed edge durability test: apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss.

Standards:

BS EN 1957, EN 1725, QB/T 1952.2

Feature

The whole machine frame made of high quality aluminum, beautiful.
This Mattress Comprehensive Performance Tester has two styles: Type A uses PLC to touch the screen control; Type B uses the entire computer control.
Roller can be electric lift, easy to operate.
Motor is Japan's Panasonic servo motor, the power sensor is the United States Celtron.
The machine is equipped with an alarm device, indicating safe operation.

Mattress Comprehensive Performance Tester Key Specifications

Model		GT-LA08A	GT-LA08B
Controller		Computer Control
Motor		Servo Motor
Power sensors		2500N
Durability test	Cylinder Shape	Round	Hexagon
	Cylinder Length	1000 mm	36±3in(915±75mm)
	Cylinder Weight	1400 N	240±10Lb(109±4.5kg)
	Diameter of roller	300 mm	17±1in(430±25mm)
	Test speed	0-20 cpm (adjustable)	0-20 cpm (adjustable)
	Stroke length	0--1000mm	0--1900mm
Hardness Value & Firmness rating test & Height loss test	Pressure plate diameter	￠355 mm / 344mm
Bed edge durability test	Test load	1000 N
	Test cycles	5000 cycles
	Maintain time	3±1s
Power supply		1∮, AC 220V 50/60Hz
Dimension (W x D x H)		280 x 250 x 180 cm	380 x 250 x 180 cm
Weight (Kg)		≈1000Kg	≈1300Kg
Standards		BS EN 1957, QB/T 1952.2	ASTM F1566
Standard accessories		EN Round Roller	ASTM Hexagon Roller
		Hardness loading pad	Hardness loading pad
		Edge loading pad	/
Option accessories		/	EN Round Roller
		/	Edge loading pad

Applications Industry
All kinds of Mattress can be tested on the Mattress Comprehensive Performance Tester
