Corrugated Box Compression Tester GT-N02A

(Furniture Testing)

Item NO.:
GT-N02A
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
ISO 2872, ISO 2874, ASTM D642, ISO 12048

Contact Now

Description

package compression tester

Applications:

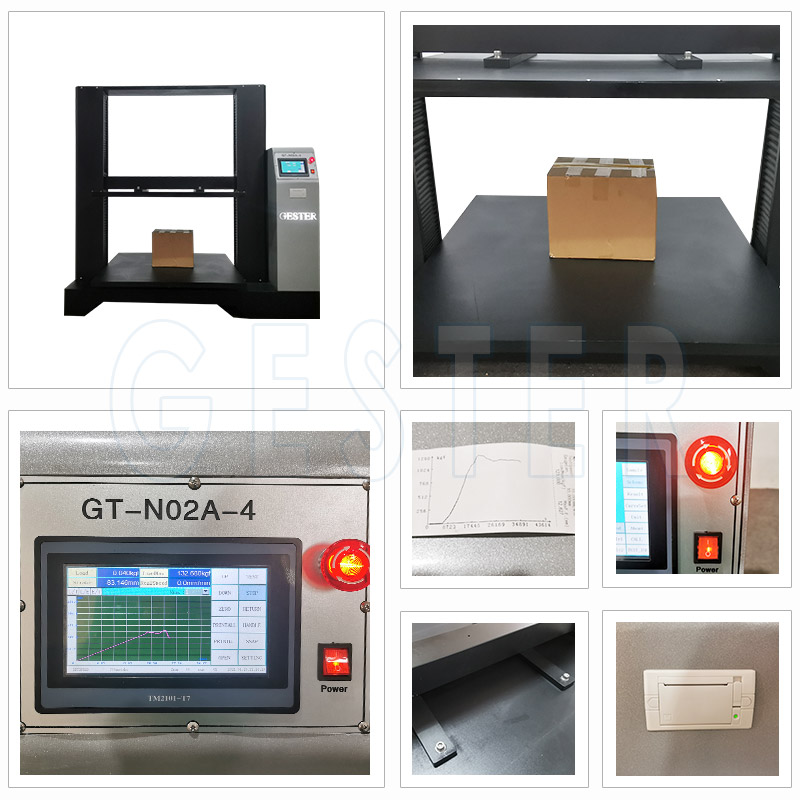

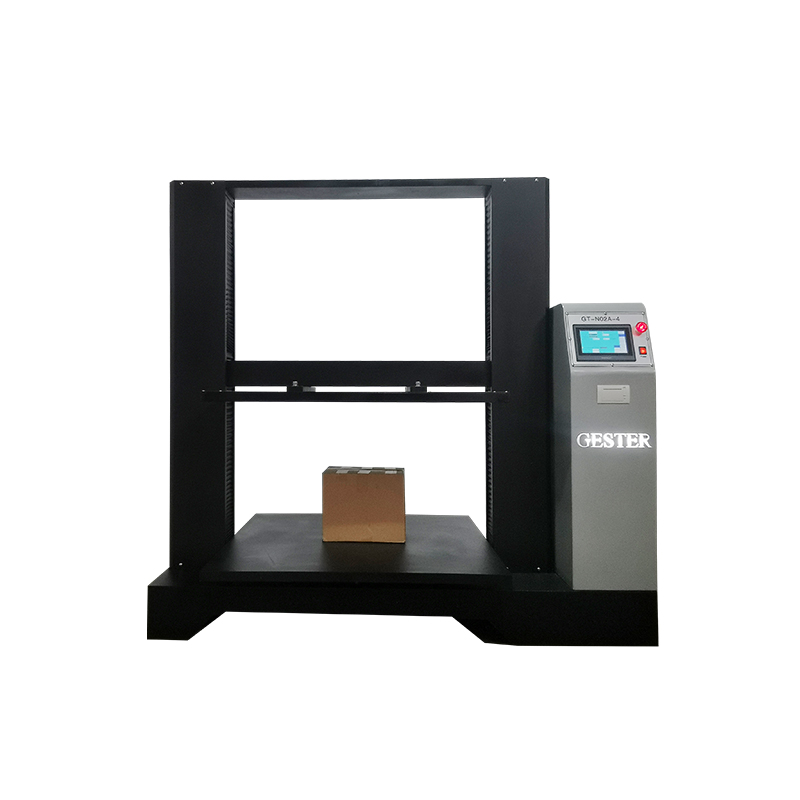

corrugated box compression testing machine is designed with versatility and high accuracy in mind, making it the ideal solution for testing the compressive strength of standard-size corrugated boxes, as well as compressive-strength packaging and containers made of other materials.

The corrugated box compression testing machine adopts an advanced mechanical structure, consisting of a pair of screw shafts and guide posts, which cooperate with each other to ensure good parallelism and reliable measurement accuracy. This guarantees accurate and consistent test results, giving you the data you need to make informed decisions about your packaging materials.

Standards:

ISO 2872, ISO 2874, ASTM D642, ISO 12048

Key Specifications

Model	GT-N02A-1	GT-N02A-2	GT-N02A-3	GT-N02A-4	GT-N02A-N
Plate Size(mm)	500 x 500	600 x 600	800 x 800	1000 x 1000	Customized
MAX stroke(mm)	500	600	800	1000	Customized
Measuring range	0-10KN, 20KN, 30KN, 50KN, 70KN, 100KN (Optional)
Indication error	±1%
Pressing Speed	10 mm/min
Return velocity	500 mm/min
Display	LCD
Printer	Direct thermal printer, high speed while noiseless.
Power	220V, 50/60Hz

package compression tester
