Corrugated Box Compression Strength Tester

Corrugated Box Compression Strength Tester GT-N02B

(Furniture Testing)

Item NO.:
GT-N02B
Lead Time:
20-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE

Contact Now

Description

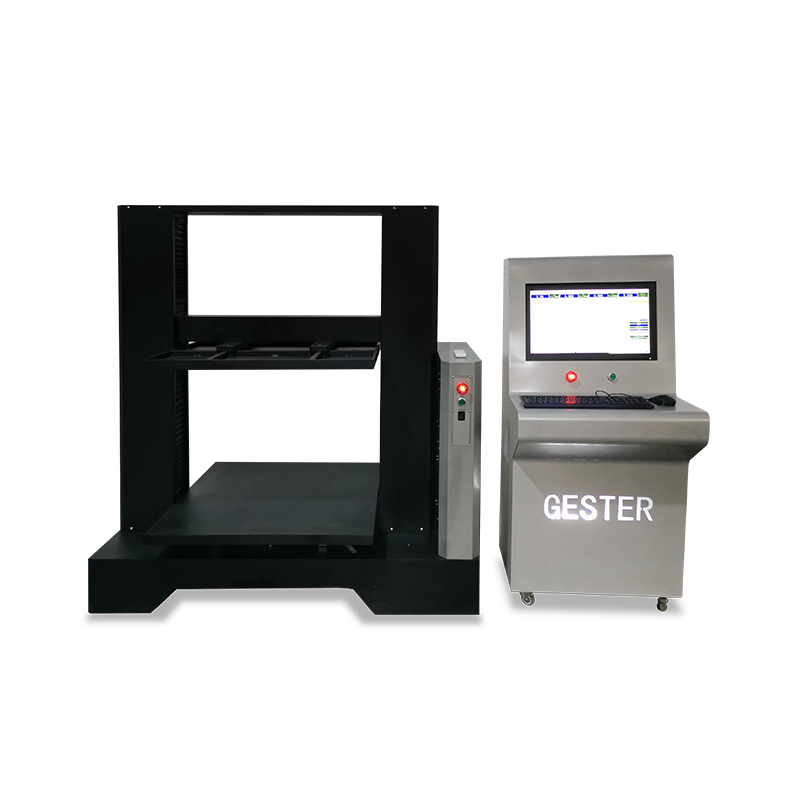

Corrugated Box Compression Strength Tester

Applications:

Corrugated Box Compression Strength Tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: good parallelism, reliable measure precision and high return speed.

Standards:

ISO2872, ISO2874, ISO 12048, ASTM D642

Feature:

Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
There are two parameters which are to be set in the constant value test: load force value.

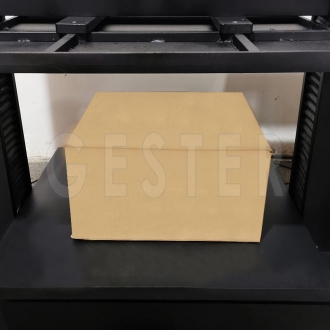

Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).

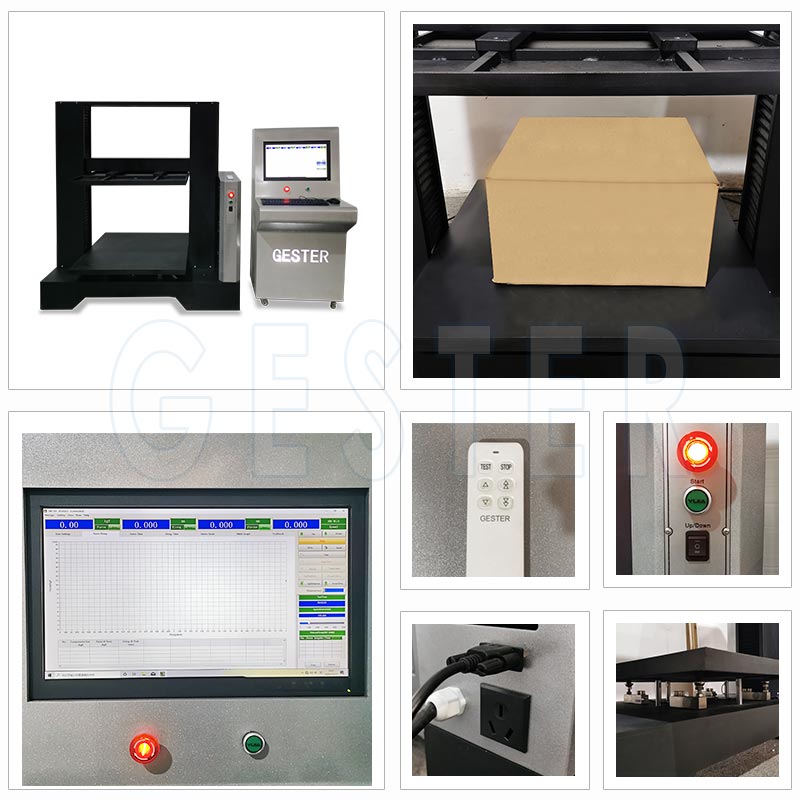

Box compression test machine overall system is in good parallelism, stationarity and high return speed.

Key Specifications:

Model	GT-N02B-1	GT-N02B-2	GT-N02B-3	GT-N02B-4	GT-N02B-N
Plate Size(mm)	500×500	600×600	800×800	1000×1000	Customized
Max Stroke(mm)	500	600	800	1000	Customized
Column Number	2
Measuring Range	0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN (Optional)
Indication Error	±0.5%
Test Speed	0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Display	Computer display mode
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power Supply	AC 220V 5A 50Hz
