ISO 8124-1 ASTM F963 EN 71-1 Sharp Edge Tester GT-MB01

(Toys Testing)

  • Item NO.:

    GT-MB01
  • Lead Time:

    Delivery within 5days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    EN 71-1, ASTM F963,​ 16CFR 1500, ISO 8124-1, GB 6675-1
Description

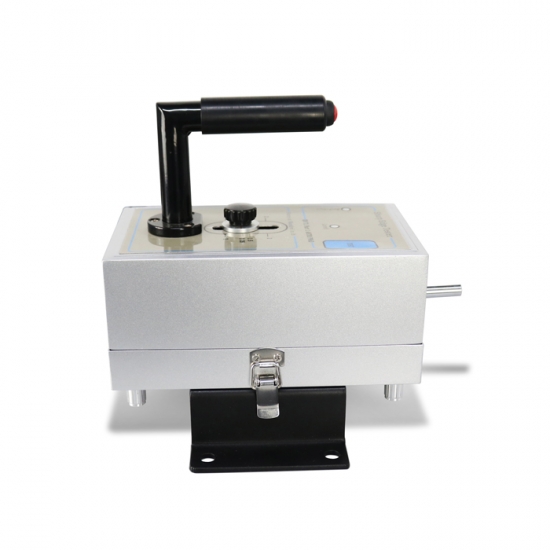

Sharp Edge Tester GT-MB01

Applications:

Toys Testing Sharp Edge Tester is used to determine that metal or glass edges on toys and other articles intended for use by children under 8 years of age, and such edges exposed in normal use or as a result of reasonably forseeable damage or abuse of such toys and articles, present a potential risk of injury by laceration or avulsion.



Standards of sharp edge test:

EN 71-1

ASTM F963

16CFR 1500

ISO 8124-1

GB 6675-1


Sharp Edge Tester Feature

1. The especially powerful value photoelectricity induction instruction function guarantees the  test strength value fixed in

    35 pounds all long, and avoid the errors caused by different angle observation.

2. The especially powerful value external adjustment function, may extremely conveniently  adjust the actual strength value

    to be consistent with the demonstration value, guarantee  strength value calibration accuracy.

3. Sharp Edge Test with 1.35 pounds calibration device, it can calibrate and adjust test force value at any time.

4. Test shaft is made of steel to and hardened processing.

    The surface should be smooth.

    The max force vertically applied to the axis when testing shoud be 1.35 LB.

5. Test shaft in its 75% turn routine, the tangent speed is 1.00±0.08 inches per second.

6. The test tape is pressure-sensitive PTFE (TFE) high temperature electrical insulation tape.


Sharp Edge Tester



Key Specifications

Model

GT-MB01

Mandrel Diameter

(9.53 ± 0.12) mm

Mandrel Hardness

≥40HR

Rotate Speed

1.00±0.08 inches per second

Power Supply

12V 50HZ

Dimensions

290x190x100 mm (LxWxH)

Weight

4 kg

Standards

EN-71-1 section 8.11

ASTM F963 section 4.7

16CFR 1500 section 49

ISO 8124-1 section 5.8

GB 6675-2 section 5.8

  Standard Accessories

1pc

Pedal activated switch

1pc

PTFE tape

1pc

Tabletop fixed plate

1pc

Charge power source

1pc

Rotating Mandrel



Applications Industry

All kinds of children products can be tested on the Toy Safety Testing Sharp Edge Tester
