Ball Impact Tester
Ball Impact Tester Ball Impact Tester Ball Impact Tester Ball Impact Tester Ball Impact Tester

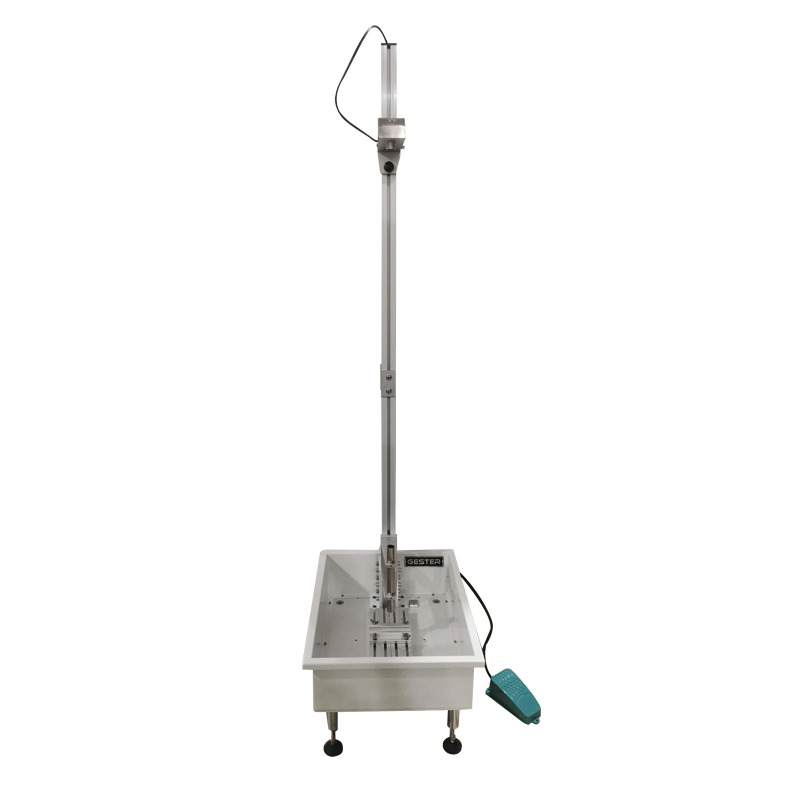

Ball Impact Tester GT-M28

(Toys Testing Equipments)

  • Item NO.:

    GT-M28
  • Lead Time:

    20-30 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    ASTM F963, ISO 8124-1, GB6675-2
Description

Ball Impact Tester

Applications:

Toys Testing Equipment Ball Impact Tester is used to test the impact resistance of all rigid toys that cover the face, such as goggles, space helmets or face shields. According to the standard, after testing, the toys shall not produce sharp edges, sharp points or loose parts which could enter the eye. This applies to toys with cut-out eye holes as well as items that cover the eyes.



Standards:

ASTM F 963 section 8.7.4
ISO 8124-1 section 5.14
GB6675-2 section 5.14



Key Specifications

Model

GT-M28

Standards

ASTM F963 section 8.7.4

DSGSDFGRDHT



ISO 8124-1 section 5.14

GB6675-2 section 5.14

Steel ball

Mass:15.8+0.80g  Diameter: 16mm

Mass:16.9±0.7g

Mass:15+0.80g

Fall mode

electromagnetic absorption or release

Impact height

130 cm

Power supply

AC 220V 50/60HZ

Packing dimensions

52 x 42 x 28cm

Packing weight

25kg



Accessories

Standards accessories

1pc

Steel ball



1pc

Clamp

Optional accessories

Optional

GT-MB01 Sharp Edge Tester



Optional

GT-MB03 Small Part Cylinder



Optional

GT-MB04 Sharp Point Tester



Ball Drop Test Equipment Instructions:

1) Affix the toy. Use the universal clamp to affix the toy firmly. (sample should be affixed firmly or not should be depend on the shape of toy and client’s requirement.)
2) Set the testing stroke range. Use left hand to unscrew the fix handle in the electromagnet rod, move the bottom of the electromagnet rod to the height which is above the drop height in 4cm (the drop height is not accurate in this moment), then screw the fix handle slightly, adsorb the steel ball to the electromagnet. Place the one end of the square perpendicular to the scale in the height required on drop bar, move slightly to let the bottom of steel ball to be vertical to the scale in the height required on the height gauge, then screw the fix handle firmly.
3) Start the test. Press the fall key, the steel ball will be free falling to impact the testing sample. Test could be done repeatedly or change the steel ball to test or change the sample to test, and the result of each test should be recorded.



Why Choose Us



Applications Industry
All kinds of children products can be tested on the Ball Impact Tester

Ball Impact Tester
