Luggage Pull Rod Fatigue Tester GT-LC11

(Furniture Testing)

Item NO.:
GT-LC11
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
QB/T 2919-2018

Contact Now

Description

Suitcase Dynamic Lift Tester GT-LC08

Applications

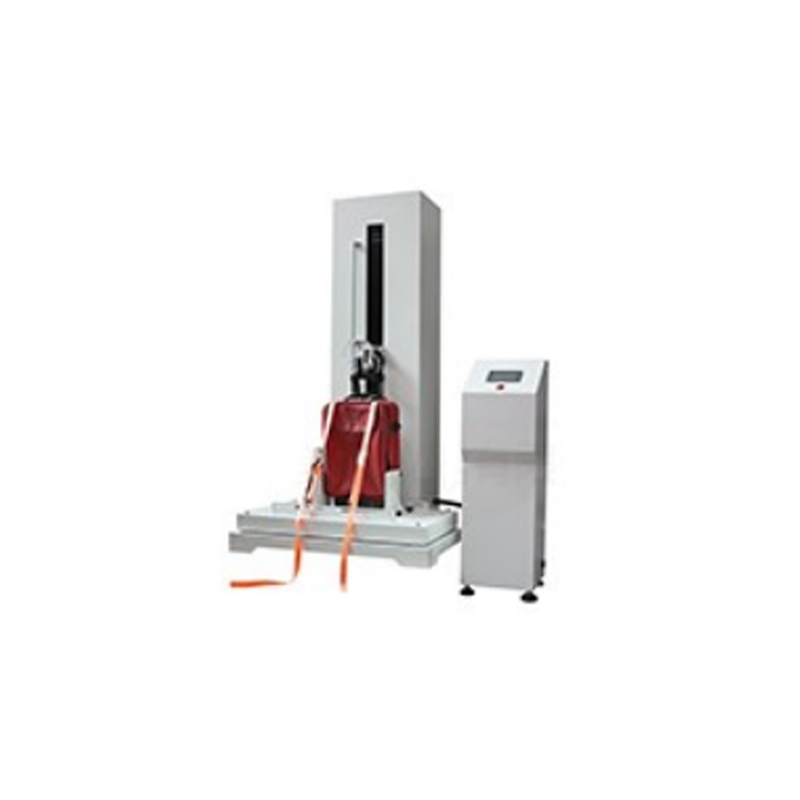

This luggage testing machine is used for fatigue resistance test of pull rod for luggage.

Under a certain frequency of pulling and pressing, the pull rod lock and pull rod of the luggage are continuously switched, reciprocated, and pressed to test the reciprocating fatigue performance, the structural fastness of the pull rod and the durability of the switch.

Standards

QB/T 2919-2018 Case and bag-Test method for resistance to fatigue of pull rod

Feature

1. Touch screen control, support Chinese and English, man-machine dialogue mode, easy to operate.
2. Driven by servo motor, the test speed is stable and accurate, realizing stepless speed regulation, and the test results are more accurate.
3. Luggage Handle Fatigue Tester can display the instantaneous force value and the retained maximum force value when pulling out and pressing.
4. Automatic opening and closing device with lever lock.
5. Using linear guides, synchronous belts and synchronous wheels for transmission, the running noise is small, the speed is uniform, and the influence of unstable speed on the sample results is reduced.

Luggage Pull Rod Reciprocating Fatigue Tester Key Specifications

Model	GT-LC11
Height of stand	1500mm
Test stroke	20～80cm, adjustable
Test position	4 induction positions
Test speed	10~25times/min, adjustable
Test times	1～999999, automatic shutdown, with power-off memory function
Control mode	7inch touch screen+PLC control
Power	1∮,AC220V,50Hz
Weight of machine	About 220kg
Dimension	(LWH)8008002100mm
