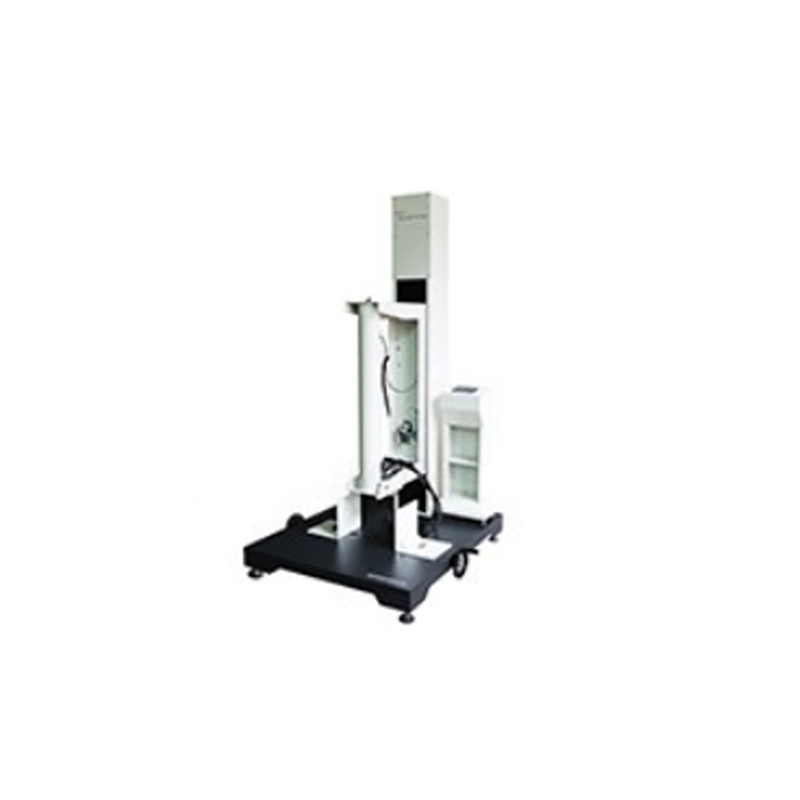

Luggage Falling Weight Impact Tester GT-LC12

(Furniture Testing)

Item NO.:
GT-LC12
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
QB/T 2918-2018

Contact Now

Description

Suitcase Dynamic Lift Tester GT-LC08

Applications

This machine is to raise a weight with a specified weight to a certain height, make it fall freely to impact the surface of the box, and judge the quality according to the degree of damage.

Standards

QB/T 2918-2018 Case and bag-Test method for impact resistance by means of falling weight

Feature

1.Touch screen control, man-machine dialogue mode, easy to operate.

2.Language: Chinese and English are supported.

3.Luggage case free fall impact tester equipped with an anti-secondary impact device to avoid the impact of the secondary impact on the sample after the impact rebound and affect the result judgment.

Luggage Falling Weight Impact Tester Key Specifications

Model	GT-LC12
Stell ball weight	(2000±10)g,(3000±10)g,(4000±10)g,(5000±10)g
Diameter of impact hummer cylinder	100±2mm
Radius of impact head	50±2mm
Ball drop control mode	DC solenoid control
Fall method	Free fall
Control method	7inch touch screen+PLC control
Power	1∮,AC220V,50Hz
Weight of machine	About 150kg
Dimension	(LWH)120011001500mm
