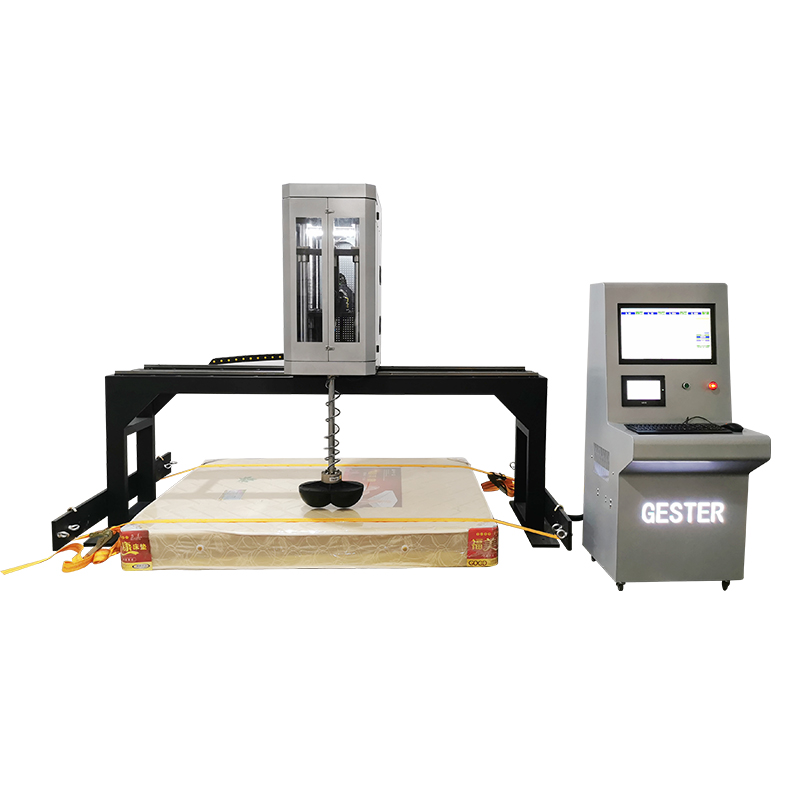

Mattress Spring Fatigue Tester/Cornell Tester GT-LA03

(Furniture Testing)

Item NO.:
GT-LA03
Lead Time:
20~30 days
Brand:
GESTER
Payment:
T/T L/C
certificate:
ISO 9001, UKAS, CE
standard:
ASTM 1566

Download Contact Now

Description

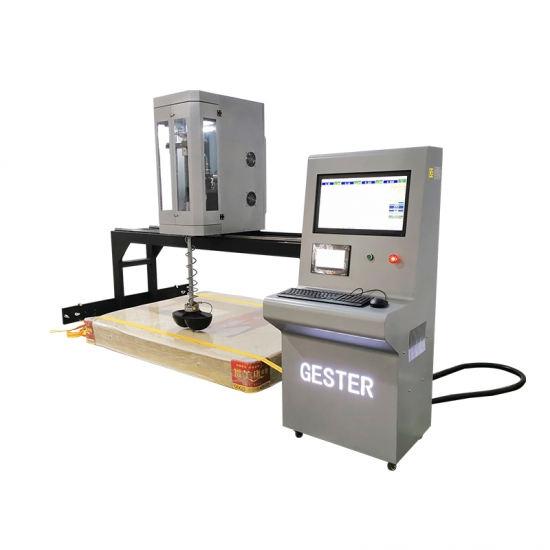

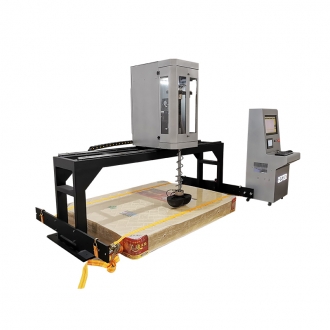

Mattress Spring Fatigue Tester

Applications:

Mattress Spring Fatigue Tester/ Cornell Tester is applied to test the endurance capacity under the long-term repetitive load and the compression deformation for the mattress. Accord with the standard ASTM F 1566.

With sofa Cornell fatigue life test method, motor drive eccentric wheel, adjust the impacting height of the impact block, then impact the testing mattress by 120-160 times / min, counter measures the impacting times, shut down automatically when reaches the setting times.

Standards:

ASTM 1566

Key Specifications

Model	GT-LA03
Impact height	0-300mm adjustable
The impact of block speed	120-160 times adjustable
Counter measures and set the range	0-99999 times
The impact of motor power	2KW DC
Standards	ASTM F1566

Applications Industry

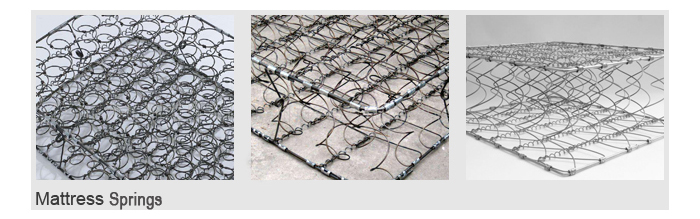

The springs of Mattress can be tested on the Mattress Spring Fatigue Tester/ Cornell Testing Machine
