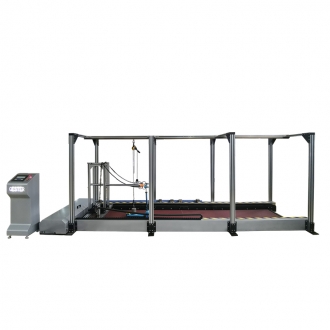

Motor Horizontal Brake Performance Tester GT-M31

(Toys Testing)

  • Item NO.:

    GT-M31
  • Lead Time:

    20-30 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    EN 71-1
Description

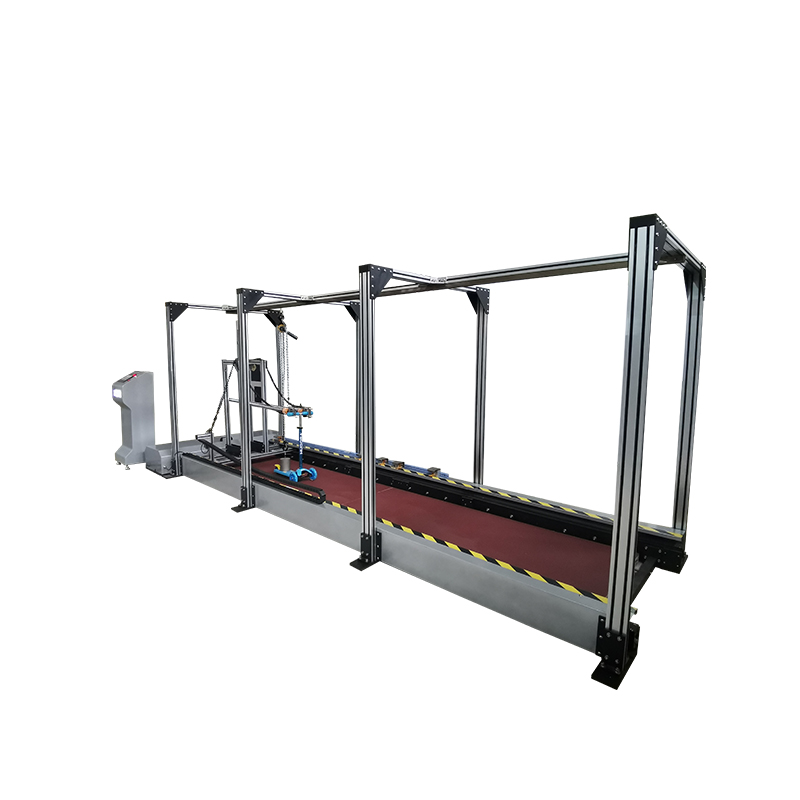

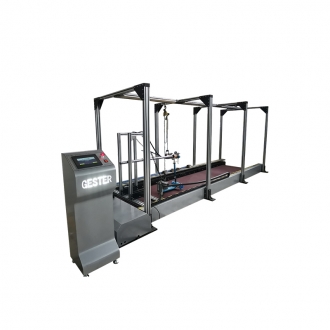

Motor Brake Performance Tester



Applications:

This Brake Performance Tester is mainly used to test the motor brake performance of electric ride-on toys.




Standards:

EN71-1 section 8.26.1.3; ISO 8124-1 section 5.16.1


Principle

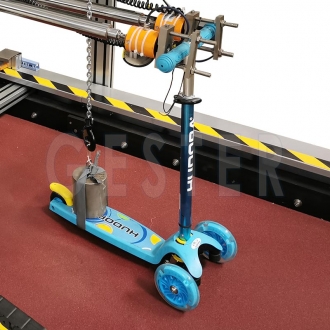

Load the toy a suitable static strength load. Measuring the force required to pull the toy on a horizontal plane covered with a surface of abrasive paper (aluminium oxide P60) at a constant speed of (2 ± 0,2) m/s. The motor shall be considered to supply sufficient braking if:

FT1 ≥ (M + 25) x 1.7  or  FT2 ≥ (M + 50) x 1.7

where

FT1 is the maximum pull force in Newtons for a toy intended for children under 36 months;

FT2 is the maximum pull force in Newtons for a toy intended for children of 36 months and over;

M is the mass of the toy in kilograms.

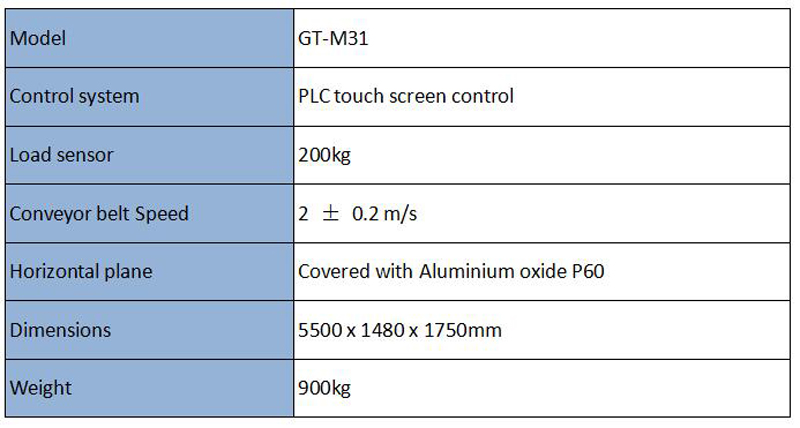

Key Specifications

Brake Performance Tester

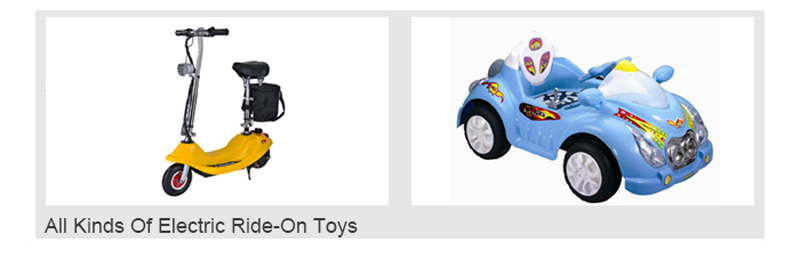

Applications Industry
All kinds of children products can be tested on the Motor Horizontal Brake Performance Tester
