Average Speed Tester GT-M30

(Toys Testing)

Item NO.:
GT-M30
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN 71-1, ISO 8124-1, GB 6675-2

Download Contact Now

Description

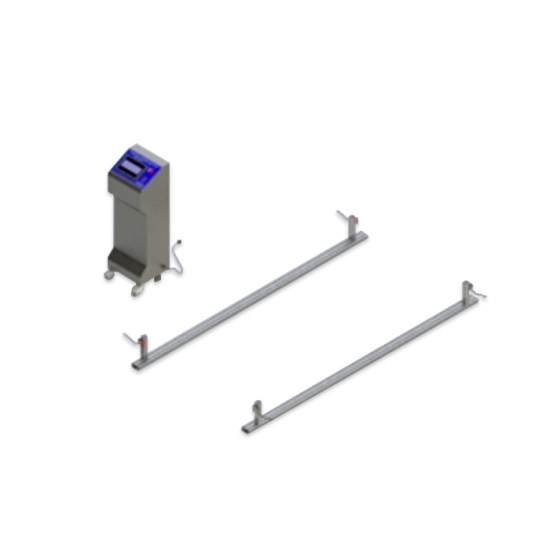

Average Speed Tester

Applications:

This Average Speed Tester is mainly used to test the mobile speed of the electric ride-on toy, can evaluate the motor braking performance and the maximum design speed of a toy cars.

Standards:

EN 71-1

ISO 8124-1

GB 6675-2

Principle

The toy car goes through two pairs of Opposite-Type Photoelectric Sensors sensing area, the instrument will measure the time toys costing when through the area and automatically calculated the speed.

Key Specifications

Model	GT-M30
Control system	Touch screen + PLC control
Sensor	Opposite-type photoelectric sensor
Testing interval length	0~ 2300mm (can be set)
Power	1∮AC 220V 50/60HZ
Dimensions (L x W x H)	2300 x 40 x 1000mm
Weight	30KG
Standards	EN-71-1 section 8.26.1.2 , 8.29 ISO 8124-1 section 5.17 GB 6675-2 section 5.17

Applications Industry

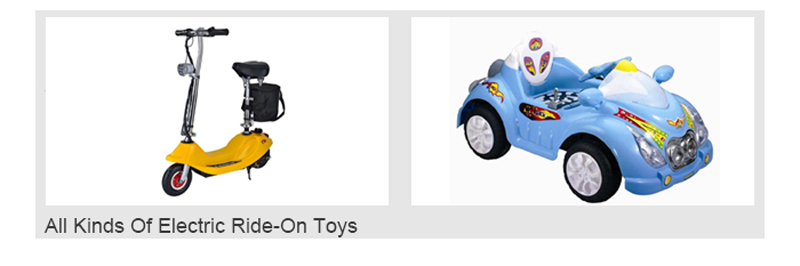

All kinds of children products can be tested on the Average Speed Tester

Average Speed Tester
