(Furniture Testing)
Item NO.:
GT-LC23Lead Time:
20-30 daysBrand:
GESTERcertificate:
ISO 9001, UKAS, CEstandard:
QB/T 5247|

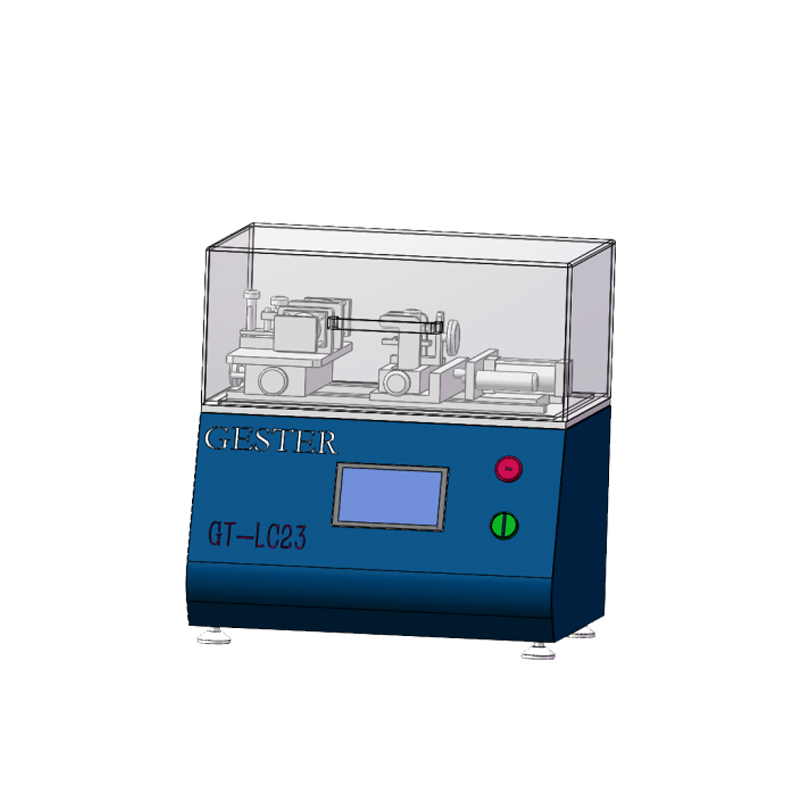

GESTER company develops our own control system with times setting and counting functions. There’s start, stop, pause, count and clear functions on the test control panel. The Plastic Clasp Durability Tester can count from 0 to 999,999 times and it will stop automatically when reach the set testing times. The control system controls the movement of two cylinders and one servo motor. The right servo motor pushes the product to the left at a certain speed and after reaching a certain position (the second and third cylinders showed as following figure), move the compression fasteners repeatedly. The Whole test work conveniently and orderly under the PLC program.
|
Plastic Clasp Durability Tester Key Specification
Model
GT-LC23
Control System
PLC+ Touch Screen( Man-machine interface control system with easy operation and power-off saving function)
Counting
0—999 999 times, automatic stop function when reaches set amount and setting the insertion and extraction times functions in the man-machine interface.
Drive Motor
High precision servo motor control, stable speed, lower noise, long life span. The right fixture seat can be controlled to left and right movement and positioning speed and angle is accurate than ordinary cylinder.
Frequency of the Right Clamp
25±1/ min
Open and Close Cylinders
2 yadeke cylinders
Cushion Hydraulic Cylinder
2
The Right & Left Clamps
Convenient to adjust the samples under different position. This structure adopts a combination of mechanical and pneumatic design.
Air Supply
exceeding 6kg/cm2
Servo Motor
400w
Power Supply
Single phase, AC220V, 50/60HZ
